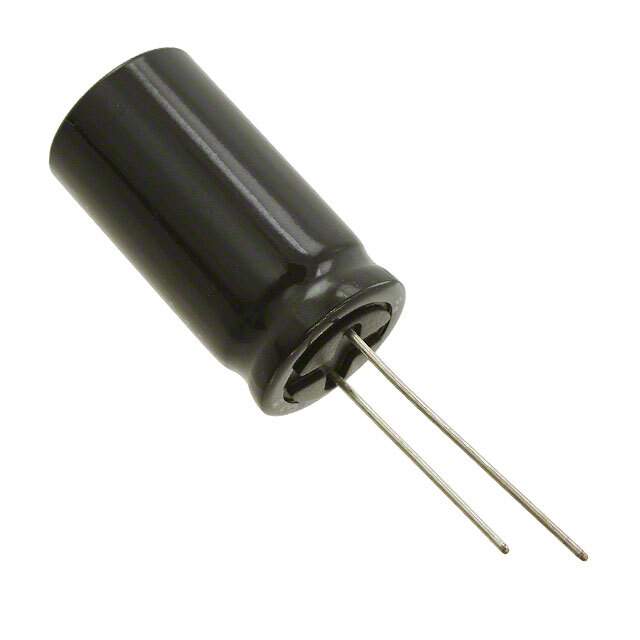

Same model may have multiple batches, images only for reference.

UVK1E103MHD

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVK1E103MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10000UF 20% 25V RADIAL / 10000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVK
Package	Bulk
Product Status	Not For New Designs
Capacitance	10000 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	4.5 A @ 120 Hz
Ripple Current @ High Frequency	3.22 A @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	Q3609628Z
Standard Package	200
Win Source Part Number	1033395-UVK1E103MHD
Ultra Librarian 3D Model	Ultra Librarian UVK1E103MHD CAD Model

Description

The UVK1E103MHD is a high-quality aluminum electrolytic capacitor that is designed to be used in general purpose applications.

Capacitance: 10000 µF
Tolerance: ±20%
Maximum Voltage: 25V
Lifetime: 2000 Hrs @ 85°C
Package: radial, can
Mounting: through hole
Status: not for new designs
Manufacturer: Nichicon
Standard Package: 200
