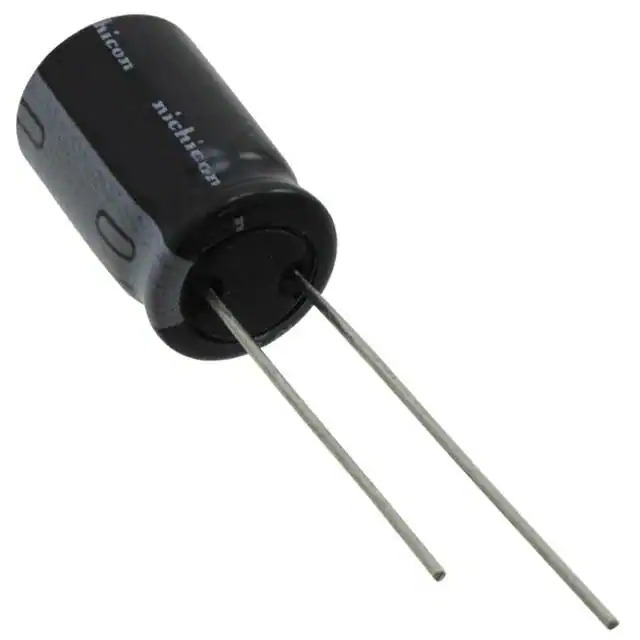

Same model may have multiple batches, images only for reference.

UVK1E102MPD

Name: UVK1E102MPD
Brand: Nichicon
SKU: 1357622
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVK1E102MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 25V RADIAL / 1000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	UVK1E102MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVK
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	860 mA @ 120 Hz
Ripple Current @ High Frequency	989 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357622-UVK1E102MPD
Ultra Librarian 3D Model	Ultra Librarian UVK1E102MPD CAD Model

Description

The UVK1E102MPD is an aluminum electrolytic capacitor from Nichicon's UVK series.

Series: UVK
Capacitance: 1000 μF
Voltage Rating: 25 V
Tolerance: ±20%
Ripple Current (Low Frequency): 860 mA @ 120 Hz
Ripple Current (High Frequency): 989 mA @ 10 kHz
Size: 0.394" diameter, 0.689" height
Mounting Type: Through Hole
Lifetime: 2000 hours @ 85°C
Polarization: Polarized
Lead Spacing: 0.197"
Packaging: Bulk
Status: Not Recommended for New Designs
