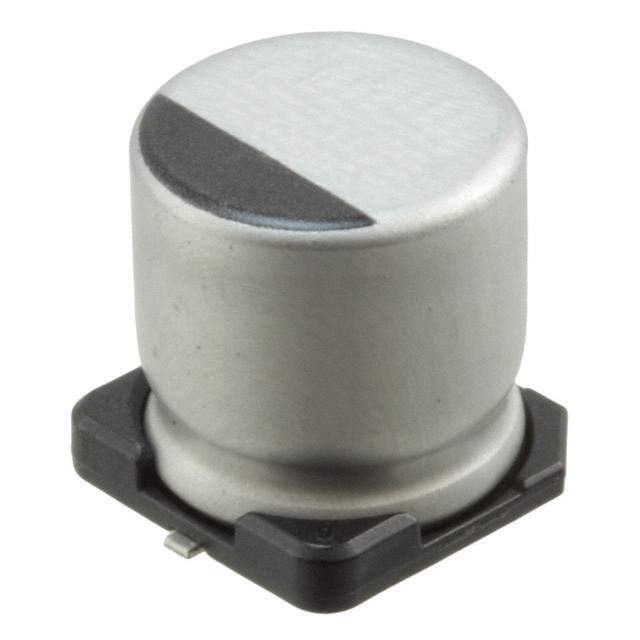

UUX2A470MNL1GS Real Image UUX2A470MNL1GS label picture UUX2A470MNL1GS real image
Same model may have multiple batches, images only for reference.
UUX2A470MNL1GS Real Image UUX2A470MNL1GS label picture UUX2A470MNL1GS real image
UUX2A470MNL1GS Real Image UUX2A470MNL1GS label picture UUX2A470MNL1GS real image
Same model may have multiple batches, images only for reference.

UUX2A470MNL1GS

Part No UUX2A470MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 100V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 230mA @ 120Hz
Ripple Current - High Frequency 384.1mA @ 10kHz
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1116780-UUX2A470MNL1GS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UUX2A470MNL1GS CAD Model

Description

The Nichicon UUX2A470MNL1GS is a general-purpose capacitor that has a capacitance of 47μF and a voltage rating of 100V.

  • Capacitance: 47μF
  • Voltage Rating: 100V
  • Case: Radial, Can - SMD
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polar
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Ripple Current-Low Frequency: 230mA @ 120Hz
  • Ripple Current-High Frequency: 384.1mA @ 10kHz
  • Market Status: Active
  • Supply and Demand: Balanced
