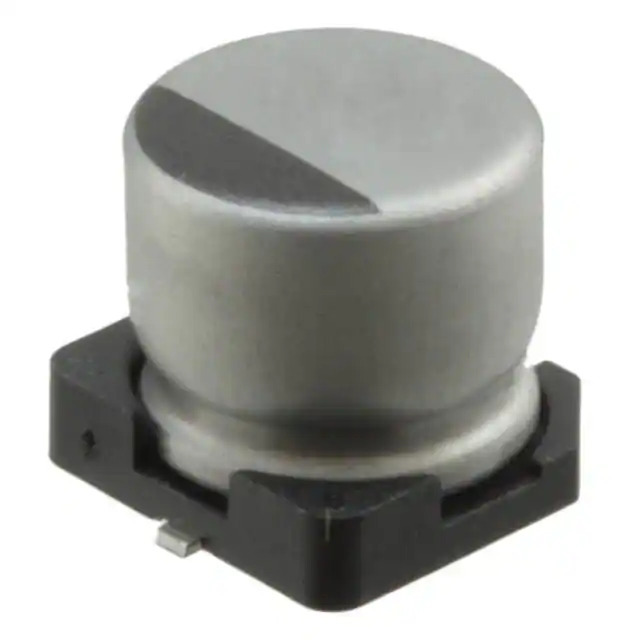

UUR1V330MCL1GS

Name: UUR1V330MCL1GS
Brand: Nichicon
SKU: 1360254
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UUR1V330MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 35V SMD / 33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUR1V330MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUR
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	55 mA @ 120 Hz
Ripple Current @ High Frequency	91.85 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360254-UUR1V330MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUR1V330MCL1GS CAD Model

Description

The UUR series aluminum electrolytic capacitor is a versatile component manufactured by Nichicon.

Capacitance: 33 μF
Voltage Rating: 35 V
Tolerance: ±20%
Ripple Current (Low Frequency): 55 mA @ 120 Hz
Ripple Current (High Frequency): 91.85 mA @ 10 kHz
Size (Diameter): 0.248" (6.30mm)
Size (Height): 0.240" (6.10mm)
Mounting Type: Surface Mount
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Lifetime: 2000 hours @ 85°C
Polarization: Polarized
Packaging: Tape and Reel
Status: Last Time Buy
REACH: Unaffected
ECCN: EAR99
