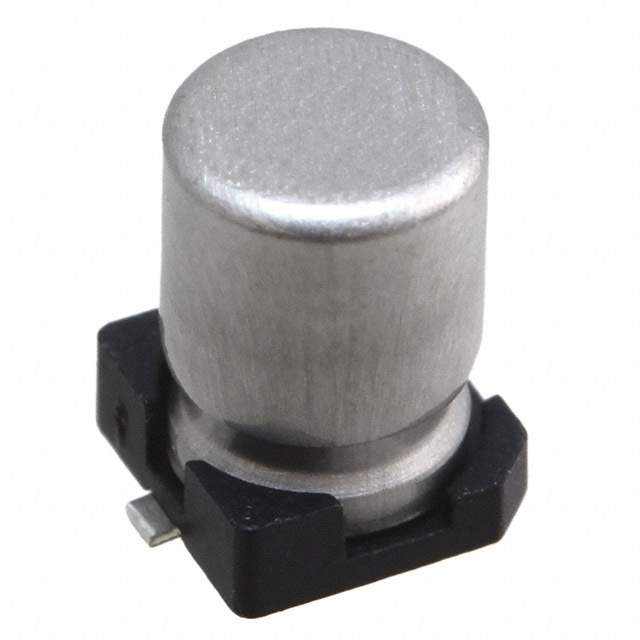

UUP1H010MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUP1H010MCL1GS

Part No UUP1H010MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V SMD / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUP
Package Tape & Reel
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Bi-Polar
Applications General Purpose
Ripple Current @ Low Frequency 8.4 mA @ 120 Hz
Ripple Current @ High Frequency 12.6 mA @ 10 kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-9551-6,-UUP1H010MCL1GS,493-9551-1,UUP1H010MCL1GS-ND,493-9551-2
Standard Package 2,000
Win Source Part Number 1001884-UUP1H010MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUP1H010MCL1GS CAD Model

Description

This is a high-quality aluminum electrolytic capacitor from Nichicon, which is part of the UUP series.

  • Function: General Purpose
  • Packaging: Tape & Reel (TR)
  • Capacitance: 1 µF
  • Tolerance: ±20%
  • Voltage - Rated: 50 V
  • Ripple Current @ Low Frequency: 8.4 mA @ 120 Hz
  • Ripple Current @ High Frequency: 12.6 mA @ 10 kHz
  • Operating Temperature: -55°C to 105°C
