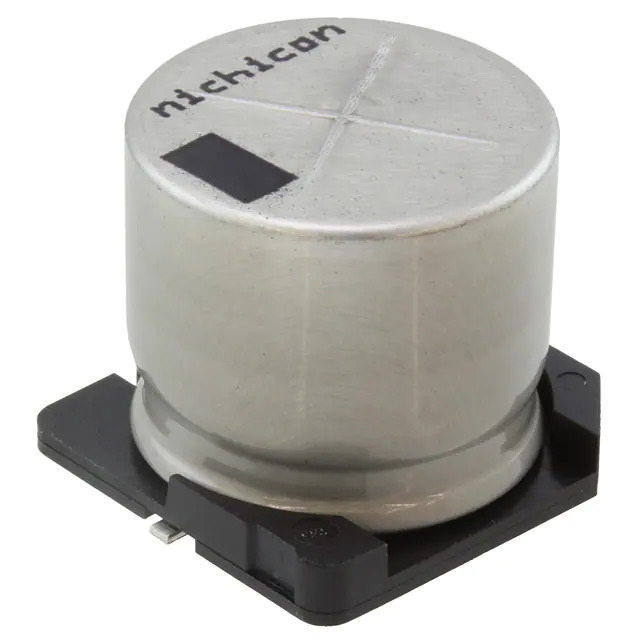

UUJ2A680MNQ1MS Nichicon
Same model may have multiple batches, images only for reference.

UUJ2A680MNQ1MS

Part No UUJ2A680MNQ1MS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 100V SMD / 68 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUJ2A680MNQ1MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUJ
Package Tape & Reel
Product Status Not For New Designs
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 205 mA @ 120 Hz
Ripple Current @ High Frequency 410 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360202-UUJ2A680MNQ1MS
Ultra Librarian 3D Model Ultra Librarian UUJ2A680MNQ1MS CAD Model

Description

The UUJ2A680MNQ1MS is a radial, can-type aluminum electrolytic capacitor from Nichicon's UUJ series.

  • Capacitance: 68 µF
  • Tolerance: ±20%
  • Voltage - Rated: 100 V
  • Ripple Current @ Low Frequency: 205 mA @ 120 Hz
  • Ripple Current @ High Frequency: 410 mA @ 10 kHz
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.669" (17.00mm)
  • Applications: General Purpose
  • Lifetime @ Temp.: 5,000 Hrs @ 105°C
  • Polarization: Polar
  • Mounting Type: Surface Mount
  • Series: UUJ
  • REACH: Unaffected
  • ECCN: EAR99
