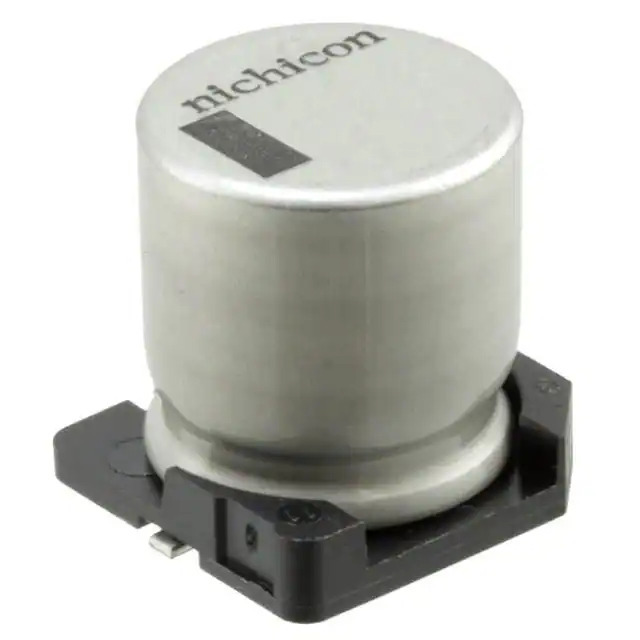

Same model may have multiple batches, images only for reference.

UUG2A101MNQ1MS

Name: UUG2A101MNQ1MS
Brand: Nichicon
SKU: 1360366
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UUG2A101MNQ1MS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 100V SMD / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUG2A101MNQ1MS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUG
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	440 mA @ 120 Hz
Lead Spacing	-
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360366-UUG2A101MNQ1MS
Ultra Librarian 3D Model	Ultra Librarian UUG2A101MNQ1MS CAD Model

Description

The Nichicon UUG2A101MNQ1MS is a surface mount aluminum electrolytic capacitor from the UUG series.

Capacitance: 100 μF
Voltage Rating: 100 V
Operating Temperature: -40°C to 85°C
Application: General Purpose
Diameter: 12.50mm
Height: 17.50mm
Tolerance: ±20%
Ripple Current - Low Frequency: 440 mA @ 120 Hz
Packaging: Tape & Reel (TR)
Lifetime: 2000 Hours @ 85°C
Manufacturer: Nichicon
Lifecycle Status: Not Recommended for New Designs
