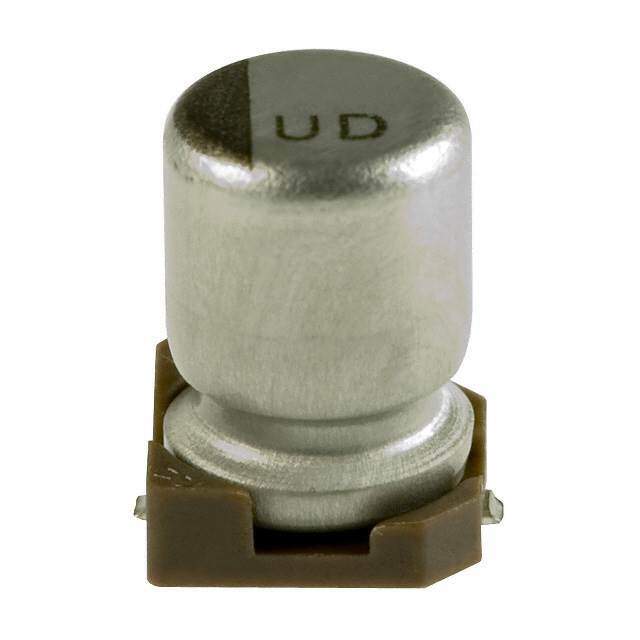

Same model may have multiple batches, images only for reference.

UUD1E100MCL1GS

Name: UUD1E100MCL1GS
Brand: Nichicon
SKU: 533960
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUD1E100MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 25V SMD
Datasheet	UUD1E100MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Reel - TR
Status	Active
Capacitance	10μF
Tolerance	±20%
Voltage Rating	25V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	40mA @ 120Hz
Impedance	1.8 Ohm
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	1116775-UUD1E100MCL1GS
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UUD1E100MCL1GS CAD Model

Description

The Nichicon 1116775-UUD1E100MCL1GS is a polarized capacitor with a capacitance of 10μF and a voltage rating of 25V.

Mounting Type: SMD (SMT)
Package: Reel - TR
Capacitance: 10μF
Voltage Rating: 25V
Tolerance: ±20%
Impedance: 1.8 Ohm
Lifetime @ Temp.: 2000 Hrs @ 105°C
Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
