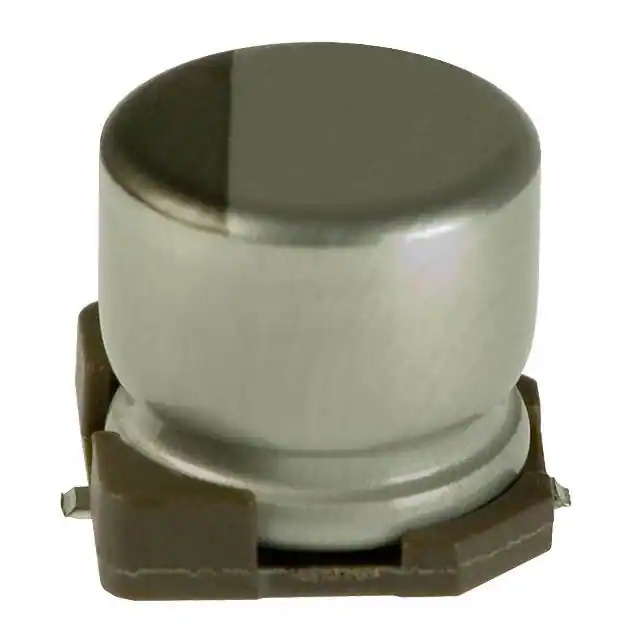

UUD1A470MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1A470MCL1GS

Part No UUD1A470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 10V SMD / 47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUD1A470MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 440 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360335-UUD1A470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1A470MCL1GS CAD Model

Description

The 1360335-UUD1A470MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Manufacturer: Nichicon
  • Product: 1360335-UUD1A470MCL1GS
  • Series: UUD
  • Capacitance: 47µF
  • Operating Temperature: -55°C to 105°C
  • Mounting: Surface Mount
  • Package: Radial, Can - SMD
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • Application: Automotive
  • Ripple Current: 115mA @ 120Hz, 230mA @ 100kHz
  • Size: 0.248" Dia (6.30mm)
  • Seated Height Max: 0.240" (6.10mm)
  • REACH: Unaffected
  • ECCN: EAR99
