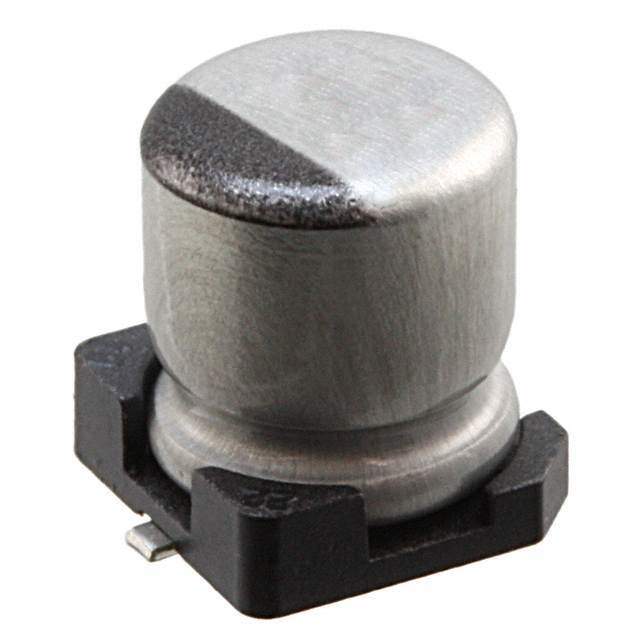

UUA1V100MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUA1V100MCL1GS

Part No UUA1V100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 35V SMD
Datasheet
UUA1V100MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Status Active
Capacitance 10μF
Tolerance ±20%
Voltage Rating 35V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 27mA @ 120Hz
Ripple Current - High Frequency 40.5mA @ 10kHz
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1116773-UUA1V100MCL1GS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UUA1V100MCL1GS CAD Model

Description

The UUA1V100MCL1GS is a surface mount aluminum electrolytic capacitor manufactured by Nichicon.

  • Capacitance: 10μF
  • Voltage Rating: 35V
  • Polarity: Polarized
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 27mA @ 120Hz
  • Ripple Current (High Frequency): 40.5mA @ 10kHz
  • Package: Radial, Can
  • Mounting: SMD (SMT)
  • Height: 6.10mm
  • Surface Mount Land Size: 5.30mm x 5.30mm
  • Lifetime: 3000 hours @ 105°C
  • Purpose: General
  • Supply and Demand Status: balanced
