Same model may have multiple batches, images only for reference.

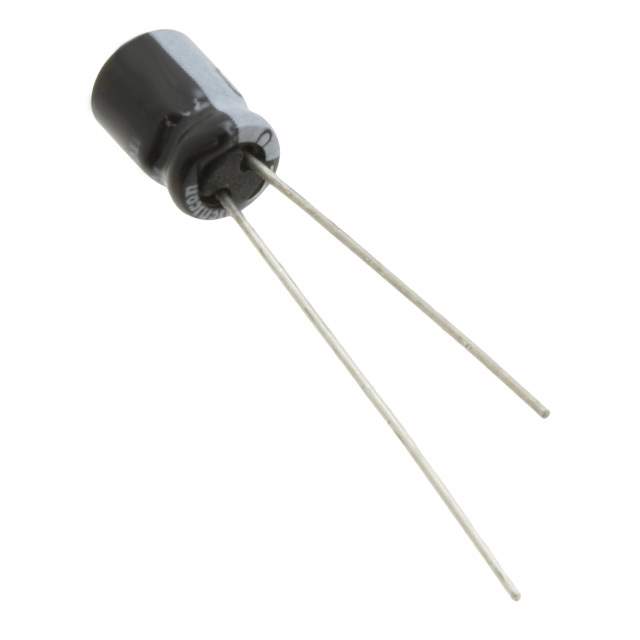

USV1H0R1MFD1TE Real Image
Same model may have multiple batches, images only for reference.

USV1H0R1MFD1TE

Part No USV1H0R1MFD1TE
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 0.1UF 20% 50V RADIAL / 0.1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series USV
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 0.1 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 mA @ 10 kHz
Lead Spacing 0.059" (1.50mm)
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 1087117-USV1H0R1MFD1TE
Ultra Librarian 3D Model Ultra Librarian USV1H0R1MFD1TE CAD Model

Description

The Nichicon USV series is a radial, can type aluminum electrolytic capacitor.

  • Capacitance: 0.1µF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Lead Spacing: 0.059" (1.50mm)
  • Surface Mount Land Size: -
  • Application: General Purpose
  • Height: 0.315" (8.00mm)
  • Packaging: Tape & Box (TB)
  • Standard Package: 2000
  • Estimated Lifetime: 5000 hours @ 105°C
  • HTSUS Code: 8532.22.0020
  • Other Names: 495-6072 and B43866C5156M-ND
