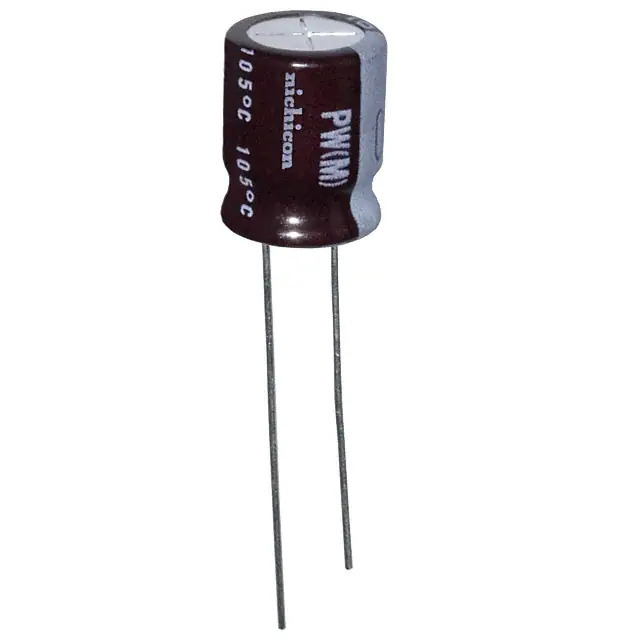

UPW2G010MPD Nichicon
Same model may have multiple batches, images only for reference.

UPW2G010MPD

Part No UPW2G010MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 400V RADIAL / 1 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPW2G010MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Last Time Buy
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 16 mA @ 120 Hz
Ripple Current @ High Frequency 25.6 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357937-UPW2G010MPD
Ultra Librarian 3D Model Ultra Librarian UPW2G010MPD CAD Model

Description

The UPW2G010MPD is a radial can aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 1 µF
  • Voltage Rating: 400 V
  • Operating Temperature: -40°C to 105°C
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 16 mA @ 120 Hz
  • Ripple Current @ High Frequency: 25.6 mA @ 10 kHz
  • Lifetime: 5000 hours @ 105°C
  • Mounting Type: Through Hole
  • Lead Spacing: 5.00mm
  • Size: 0.394" in diameter
  • Height: 0.492" in height
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Product Status: Last Time Buy
