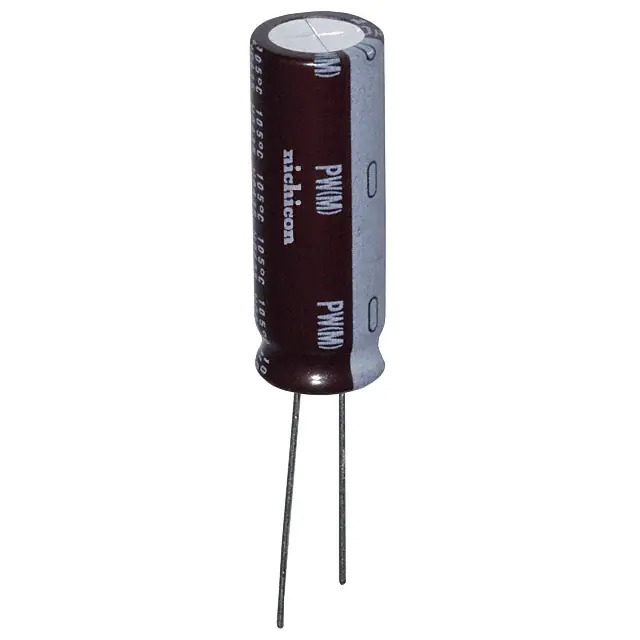

Same model may have multiple batches, images only for reference.
UPW1J681MHD6 Nichicon
Same model may have multiple batches, images only for reference.

UPW1J681MHD6

Part No UPW1J681MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 63V RADIAL / 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UPW1J681MHD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.703 A @ 120 Hz
Ripple Current @ High Frequency 2.27 A @ 100 kHz
Impedance 47 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.398" (35.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357924-UPW1J681MHD6
Ultra Librarian 3D Model Ultra Librarian UPW1J681MHD6 CAD Model

Description

The UPW1J681MHD6 is a radial, can-type aluminum electrolytic capacitor from Nichicon's UPW series.

  • Capacitance: 680 µF
  • Tolerance: ±20%
  • Voltage: 63 V
  • Ripple Current (Low Frequency): 1.703 A @ 120 Hz
  • Ripple Current (High Frequency): 2.27 A @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" Dia (12.50mm)
  • Height: 1.398" (35.50mm)
  • Application: General-Purpose
  • Lifetime: 7,000 hours @ 105°C
  • Polarization: Polar
  • Mounting: Through-Hole
  • REACH: Unaffected
  • ECCN: EAR99
  • Impedance: 47 mOhms
