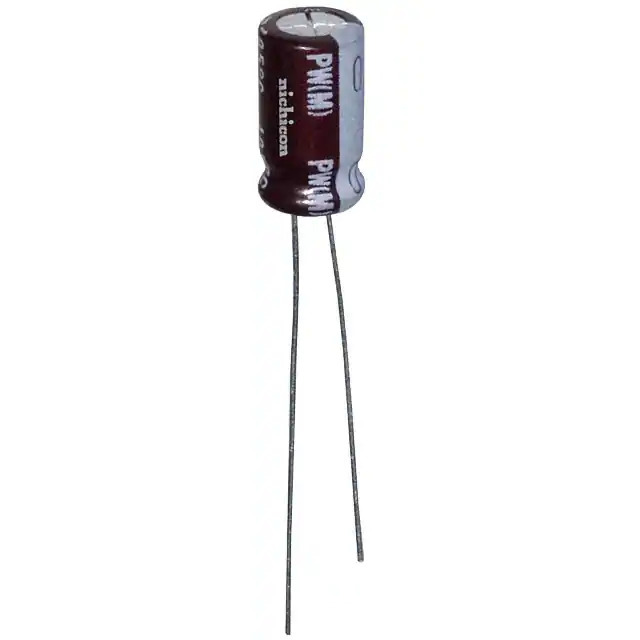

Same model may have multiple batches, images only for reference.

UPW1H330MED

Name: UPW1H330MED
Brand: Nichicon
SKU: 1358004
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UPW1H330MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 50V RADIAL / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPW1H330MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Obsolete
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	90 mA @ 120 Hz
Ripple Current @ High Frequency	300 mA @ 100 kHz
Impedance	430 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358004-UPW1H330MED
Ultra Librarian 3D Model	Ultra Librarian UPW1H330MED CAD Model

Description

The UPW1H330MED is an aluminum electrolytic capacitor from Nichicon's UPW series.

Capacitance: 33μF
Tolerance: ±20%
Rated Voltage: 50V
Maximum ESR: 430 mOhms
Temperature Range: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Mounting Type: Through Hole
Size: 6.30mm Dia x 11.00mm H
Status: Obsolete
Packaging: Bulk
REACH: Unaffected
ECCN: EAR99
Polarization: Polarized
Lead Spacing: 2.50mm
