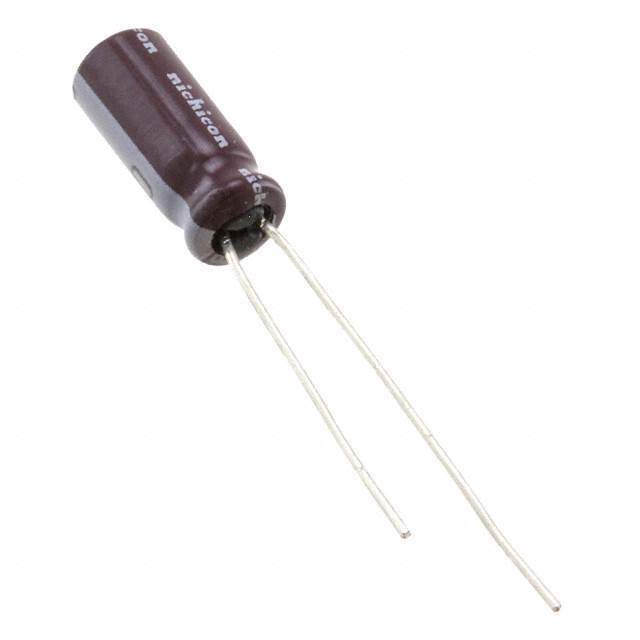

UPW1H100MDD1TD Real Image
Same model may have multiple batches, images only for reference.

UPW1H100MDD1TD

Part No UPW1H100MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 36 mA @ 120 Hz
Impedance 1.4 Ohms
Lead Spacing 0.098" (2.50mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11355-3,493-11355-1
Standard Package 2,000
Win Source Part Number 1216444-UPW1H100MDD1TD
Ultra Librarian 3D Model Ultra Librarian UPW1H100MDD1TD CAD Model

Description

The UPW series aluminum electrolytic capacitor is a general-purpose component used in various electronic circuits and manufactured by Nichicon.

  • Capacitance: 10 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 1.4 Ohms
  • Height: 0.492" (12.50mm) (Max)
  • Polarization: Polarized
  • Package: Radial, Can
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Standard Package: 2,000
  • Recommended for new designs: No
  • Ripple Current: 36 mA @ 120 Hz
