Same model may have multiple batches, images only for reference.

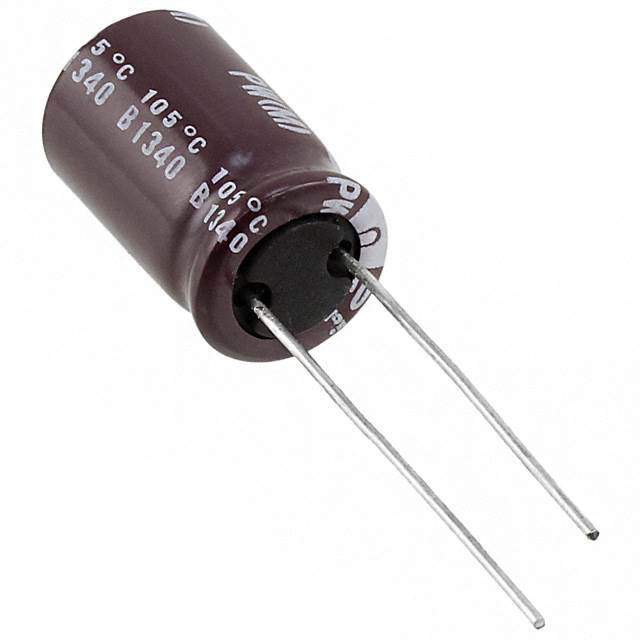

UPW1E471MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UPW1E471MPD1TD

Part No UPW1E471MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 787.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.05 A @ 100 kHz
Impedance 68 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11771-1,493-11771-3
Standard Package 500
Win Source Part Number 1000737-UPW1E471MPD1TD
Ultra Librarian 3D Model Ultra Librarian UPW1E471MPD1TD CAD Model

Description

This electronic component is an aluminum electrolytic capacitor that falls under the Capacitors category.

  • Win Source Part Number: 1000737-UPW1E471MPD1TD
  • Series: UPW
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Application: General Purpose
  • Seated Height: 0.650" (16.50mm)
  • Standard Package: 500 units
  • Capacitance: 470 μF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Impedance: 68 mOhms
  • Lifetime @ Temperature: 5000 Hrs @ 105°C
  • Polarity: Polarized
  • Package/Case: Radial, Can, 0.394" Dia (10.00mm)
  • Operating Temperature: -55°C to 105°C
