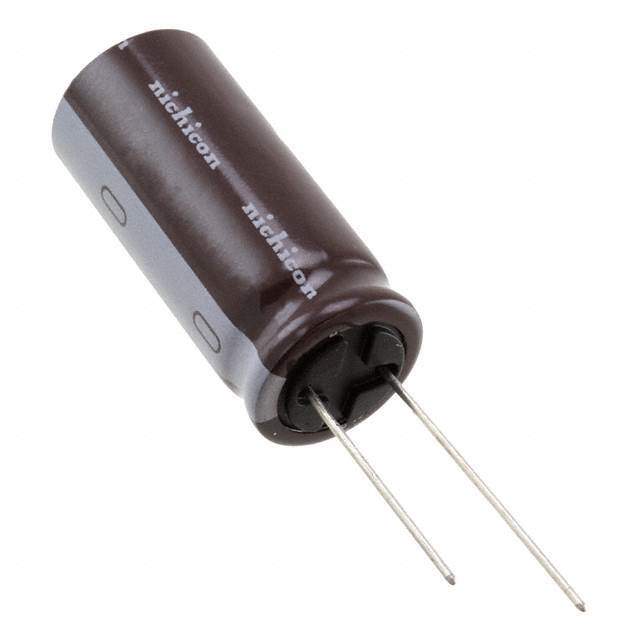

Same model may have multiple batches, images only for reference.

UPT2P221MHD

Name: UPT2P221MHD
Brand: Nichicon
SKU: 1009641
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPT2P221MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 220V RADIAL / 220 µF 220 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPT
Package	Bulk
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	220 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	770 mA @ 120 Hz
Ripple Current @ High Frequency	1.232 A @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPT2P221MHD-ND,493-5704
Standard Package	300
Win Source Part Number	1009641-UPT2P221MHD
Ultra Librarian 3D Model	Ultra Librarian UPT2P221MHD CAD Model

Description

The UPT series aluminum electrolytic capacitor from Nichicon is a high-quality capacitor with a capacitance of 220 µF and a voltage rating of 220 V.

Application: General-purpose
Maximum Height: 1.457" (37.00mm) when seated
ESR: Not specified
Lifetime @ 105°C: 5000 Hrs
Polarization: Polarized
Package/Case: Radial, can
Mounting Type: Through-hole
Ripple Current (Low Frequency): 770 mA @ 120 Hz
Ripple Current (High Frequency): 1.232 A @ 10 kHz
Surface Mount Land Size: Not specified
Operating Temperature Range: -25°C to 105°C
Other Names: UPT2P221MHD-ND and 493-5704
