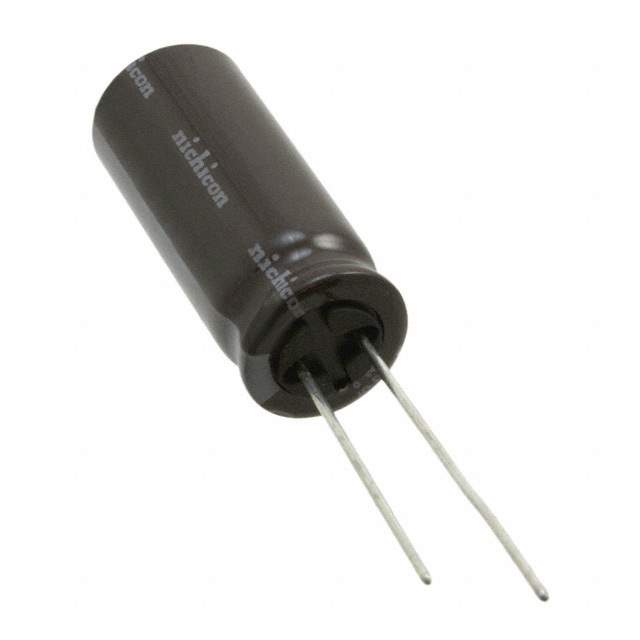

Same model may have multiple batches, images only for reference.

UPT2E680MHD

Name: UPT2E680MHD
Brand: Nichicon
SKU: 695424
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPT2E680MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	ALUMINUM ELECTROLYTIC CAPACITORS \| CAP ALUM 68UF 20% 250V RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Capacitance	68μF
Tolerance	±20%
Voltage - Rated	250V
Lifetime at Temp.	5000 Hrs at 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current at Low Frequency	360mA at 120Hz
Lead Spacing	0.197"
Parts Dimension	0.492" Dia (12.50mm)
Height - Seated (Maximum)	1.299" (33.00mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1278112-UPT2E680MHD
Manufacturer Homepage	www.nichicon-us.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian UPT2E680MHD CAD Model

Description

The Nichicon UPT2E680MHD capacitor is a radial, can type capacitor with a capacitance of 68μF and a voltage rating of 250V.

Capacitance: 68μF
Voltage Rating: 250V
Tolerance: ±20%
Polarized: Yes
Lead Spacing: 0.197"
Mounting: through-hole
Application: general purpose
Temperature Range: -25°C to 105°C
Height: 1.299" (33.00mm)
Diameter: 0.492" (12.50mm)
Ripple Current: 360mA @ 120Hz
Lifetime: 5000 hours @ 105°C
