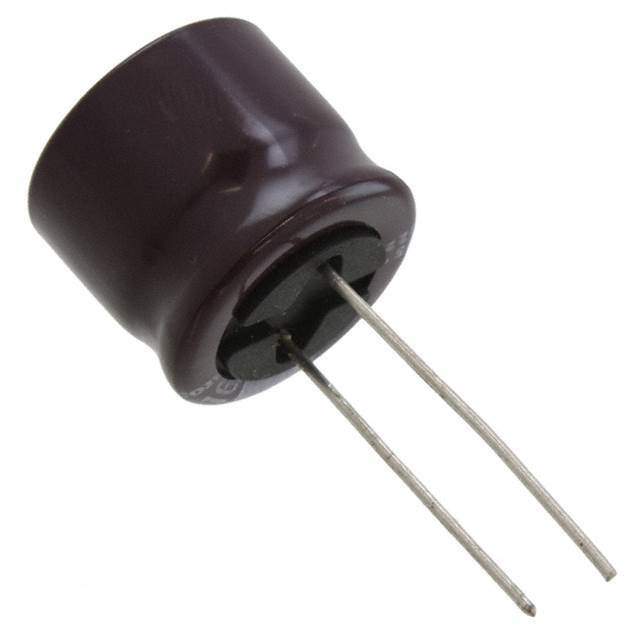

Same model may have multiple batches, images only for reference.

UPM1V821MHD6

Name: UPM1V821MHD6
Brand: Nichicon
SKU: 1162549
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1V821MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 820UF 20% 35V RADIAL / 820 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	820 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.38 A @ 120 Hz
Ripple Current @ High Frequency	1.62 A @ 10 kHz
Impedance	38 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPM1V821MHD6-ND,493-15799
Standard Package	400
Win Source Part Number	1162549-UPM1V821MHD6
Ultra Librarian 3D Model	Ultra Librarian UPM1V821MHD6 CAD Model

Description

The Nichicon UPM1V821MHD6 is a through-hole aluminum electrolytic capacitor with a capacitance of 820μF and voltage rating of 35V.

Capacitance: 820μF
Voltage Rating: 35V
Ripple Current: 1.38A @ 120Hz and 1.62A @ 10kHz
Diameter: 0.709" (18.00mm)
Suitable for: General purpose applications
Supply and Demand Status: Balanced
Package: Bulk
Popularity: Medium
