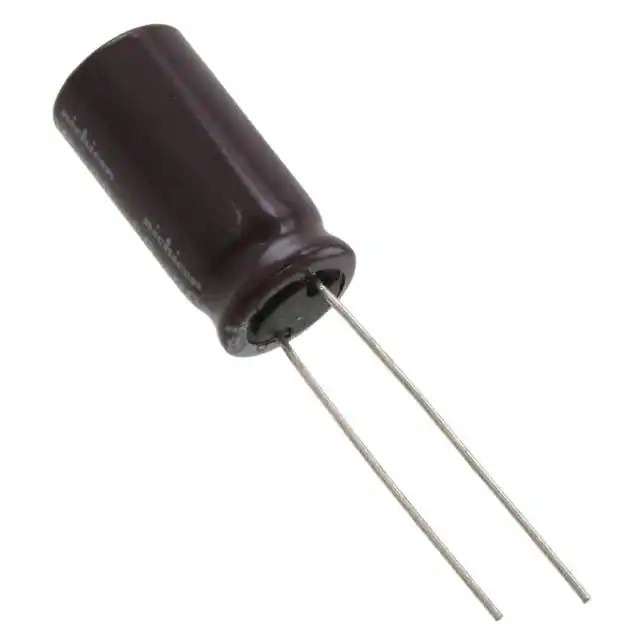

Same model may have multiple batches, images only for reference.

UPM1H151MPD

Name: UPM1H151MPD
Brand: Nichicon
SKU: 1357805
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1H151MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 50V RADIAL / 150 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPM1H151MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	570 mA @ 120 Hz
Ripple Current @ High Frequency	820 mA @ 10 kHz
Impedance	100 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357805-UPM1H151MPD
Ultra Librarian 3D Model	Ultra Librarian UPM1H151MPD CAD Model

Description

The UPM1H151MPD is an aluminum electrolytic capacitor from Nichicon.

Series: UPM
Package / Case: Radial, Can
Temperature Range: -55°C to 105°C
Capacitance: 150 μF
Voltage Rating: 50 V
Lifetime: 5000 Hours @ 105°C
Ripple Current: 570 mA @ 120 Hz
Size: 0.394" diameter (10.00mm)
Height: 0.866" (22.00mm)
