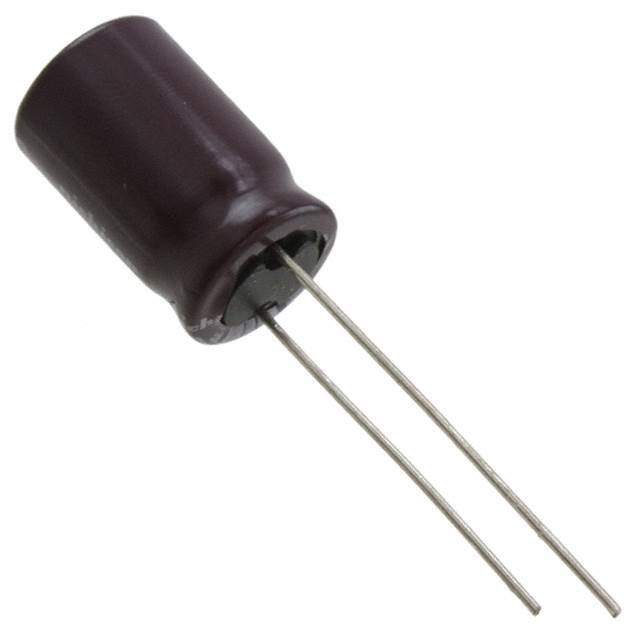

Same model may have multiple batches, images only for reference.

UPM1H101MPD6

Name: UPM1H101MPD6
Brand: Nichicon
SKU: 1143794
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPM1H101MPD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	385 mA @ 120 Hz
Ripple Current @ High Frequency	580 mA @ 10 kHz
Impedance	160 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	1,800
Win Source Part Number	1143794-UPM1H101MPD6
Ultra Librarian 3D Model	Ultra Librarian UPM1H101MPD6 CAD Model

Description

The Nichicon UPM1H101MPD6 is an aluminum electrolytic capacitor product in the UPM series.

Capacitance: 100 µF
Voltage Rating: 50 V
Tolerance: ±20 percent
Mounting: Through-Hole
Package: Radial, Can
Lifetime: 5000 hours @ 105°C
Polarity: Polarized
