Same model may have multiple batches, images only for reference.

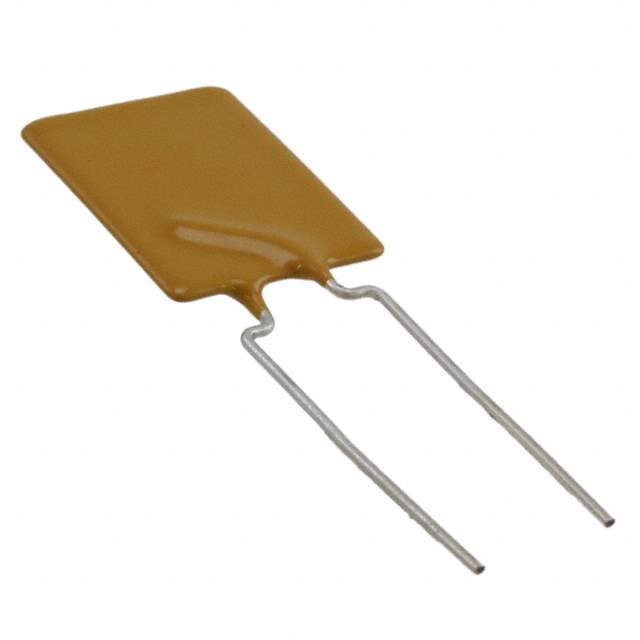

AHRF1000-2 Real Image
Same model may have multiple batches, images only for reference.

AHRF1000-2

Part No AHRF1000-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 10A RADIAL  /  Polymeric PTC Resettable Fuse 16V 10 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AHRF
Package Tape & Reel (TR),Tape & Reel Cut Tape (CT)
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 10 A
Current - Trip (It) 20.5 A
Time to Trip 10.5 s
Resistance - Initial (Ri) (Min) 5.1 mOhms
Resistance - Post Trip (R1) (Max) 15 mOhms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Lead Spacing 0.400" (10.15mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names AHRF1000-2CT,C15082-000,AHRF10002,AHRF1000TR,-AHRF1000-2,18-AHRF1000-2CT,AHRF1000-2-ND,AHRF1000-2HF,AHRF1000-2TR,RF3350-000,-AHRF1000-2HF,-AHRF1000-2-ND,AHRF1000CT-ND,AHRF1000TR-ND,AHRF1000CT,AHRF1000-2HF-ND,18-AHRF1000-2TR
Standard Package 1,000
Win Source Part Number 1088272-AHRF1000-2
Ultra Librarian 3D Model Ultra Librarian AHRF1000-2 CAD Model

Description

The AHRF1000-2 is a PTC resettable fuse from Littelfuse Inc.

  • Series: PolySwitch®, AHRF
  • Packaging: Tape and Reel
  • Operating Temperature: -40°C to 125°C
  • Maximum Voltage: 16V
  • Current Hold (Ih) (Max): 10 A
  • Current Trip (It): 20.5 A
  • Time to Trip: 10.5 s
  • Package: Radial, Disc
  • Mounting: Through-Hole
  • Resistance - Initial (Ri) (Min): 5.1 mOhms
  • Resistance - Post Trip (R1) (Max): 15 mOhms
