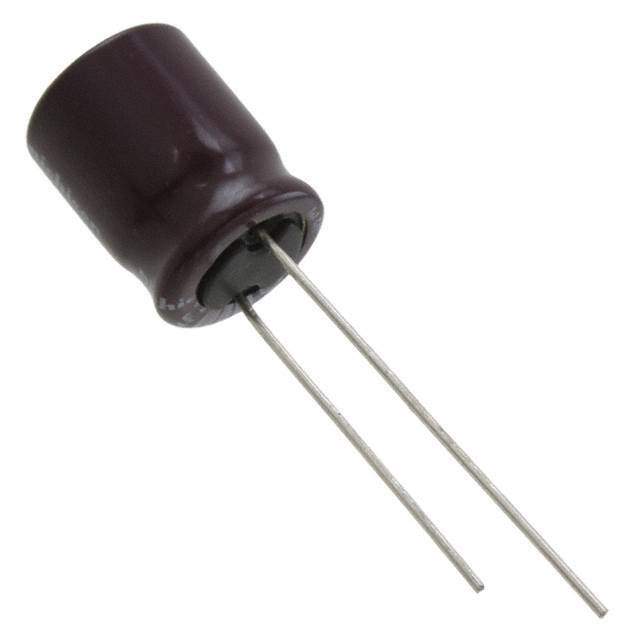

Same model may have multiple batches, images only for reference.

UPM1E221MPD6

Name: UPM1E221MPD6
Brand: Nichicon
SKU: 1350750
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1E221MPD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 25V RADIAL / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPM1E221MPD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	485 mA @ 120 Hz
Ripple Current @ High Frequency	670 mA @ 10 kHz
Impedance	130 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1350750-UPM1E221MPD6
Ultra Librarian 3D Model	Ultra Librarian UPM1E221MPD6 CAD Model

Description

The Nichicon UPM aluminum electrolytic capacitor is a radial, can packaged device that is designed for general purpose applications.

Capacitance: 220 µF
Voltage Rating: 25V
Tolerance: ±20%
Lead Spacing: 0.197" (5.00mm)
Impedance: 130 mOhms
Height: 0.571" (14.50mm) when seated
Operating Temperature Range: -55°C to 105°C
Ripple Current: 485 mA @ 120 Hz
Lifetime: 5000 Hrs @ 105°C
Mounting Type: through-hole
