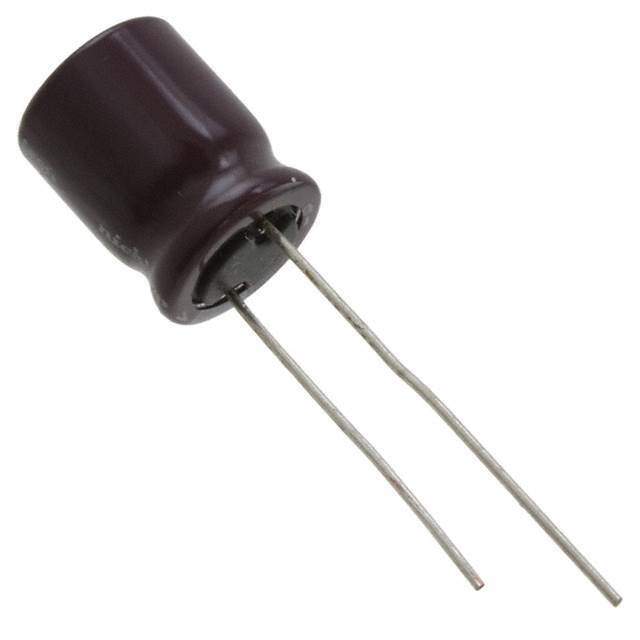

Same model may have multiple batches, images only for reference.

UPJ1J680MPD6TD

Name: UPJ1J680MPD6TD
Brand: Nichicon
SKU: 1383802
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UPJ1J680MPD6TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 68UF 20% 63V RADIAL / 68 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPJ1J680MPD6TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPJ
Package	Cut Tape (CT)Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	310 mA @ 120 Hz
Ripple Current @ High Frequency	495 mA @ 10 kHz
Impedance	280 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	500 pcs
Win Source Part Number	1383802-UPJ1J680MPD6TD
Ultra Librarian 3D Model	Ultra Librarian UPJ1J680MPD6TD CAD Model

Description

The 1383802-UPJ1J680MPD6TD is an aluminum electrolytic capacitor from Nichicon's UPJ series.

Capacitance: 68 μF
Voltage Rating: 63V
Application: General-purpose
Height: 0.551" (14.00mm)
Diameter: 0.394" (10.00mm)
Lead Spacing: 0.197" (5.00mm)
Mounting Type: Through-Hole
Temperature Range: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Polarization: Polarized
Package: Radial can
