Same model may have multiple batches, images only for reference.

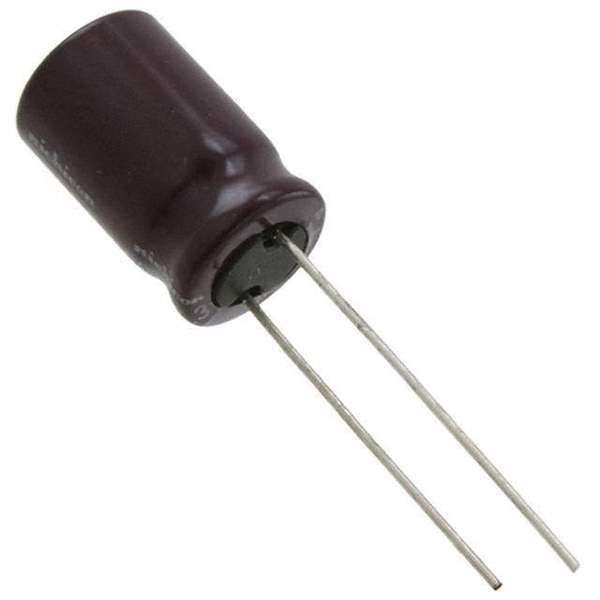

UPJ1H101MPD6TD Real Image
Same model may have multiple batches, images only for reference.

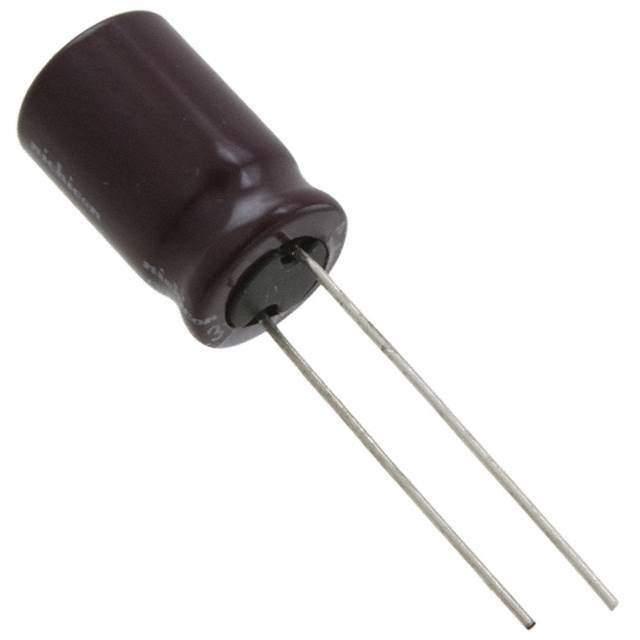

UPJ1H101MPD6TD

Part No UPJ1H101MPD6TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPJ1H101MPD6TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPJ
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 385 mA @ 120 Hz
Ripple Current @ High Frequency 580 mA @ 10 kHz
Impedance 210 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11804-1,493-11804-3
Standard Package 500
Win Source Part Number 1010067-UPJ1H101MPD6TD
Ultra Librarian 3D Model Ultra Librarian UPJ1H101MPD6TD CAD Model

Description

The Nichicon UPJ1H101MPD6TD is an aluminum electrolytic capacitor that is designed for use in various electronic circuits.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Height: 16.50mm
  • Packaging: Cut Tape and Tape and Box
