Same model may have multiple batches, images only for reference.

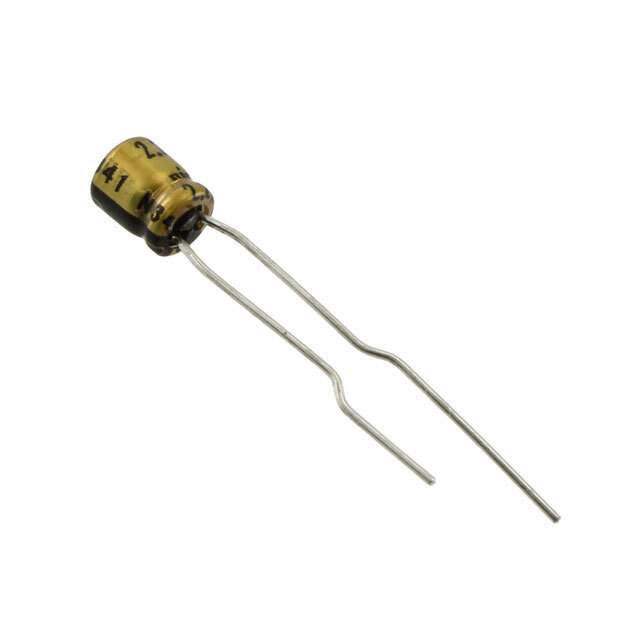

UMW1V3R3MDD1TP Real Image
Same model may have multiple batches, images only for reference.

UMW1V3R3MDD1TP

Part No UMW1V3R3MDD1TP
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 3.3UF 20% 35V RADIAL
Datasheet
UMW1V3R3MDD1TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging AMMO PACKAGE
Status Active
Capacitance 3.3μF
Tolerance ±20%
Voltage Rating 35V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications Audio
Ripple Current - Low Frequency 15mA @ 120Hz
Ripple Current - High Frequency 22.5mA @ 10kHz
Lead Spacing 0.059" (1.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 117015-UMW1V3R3MDD1TP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UMW1V3R3MDD1TP CAD Model

Description

The UMW1V3R3MDD1TP is a 3.3μF capacitor designed for use in audio applications manufactured by Nichicon.

  • Capacitance: 3.3μF
  • Voltage Rating: 35V
  • Capacitance Tolerance: ±20%
  • Lead Spacing: 0.059" (1.50mm)
  • Height Seated (Max): 0.236" (6.00mm)
  • Polarization: Polar
  • Lifetime: 1000 hours @ 85°C
  • Mounting Style: Through Hole
  • Packaging: Ammo
  • Ripple Current: 15mA @ 120Hz and 22.5mA @ 10kHz
  • Operating Temperature Range: -40°C to 85°C
