Same model may have multiple batches, images only for reference.

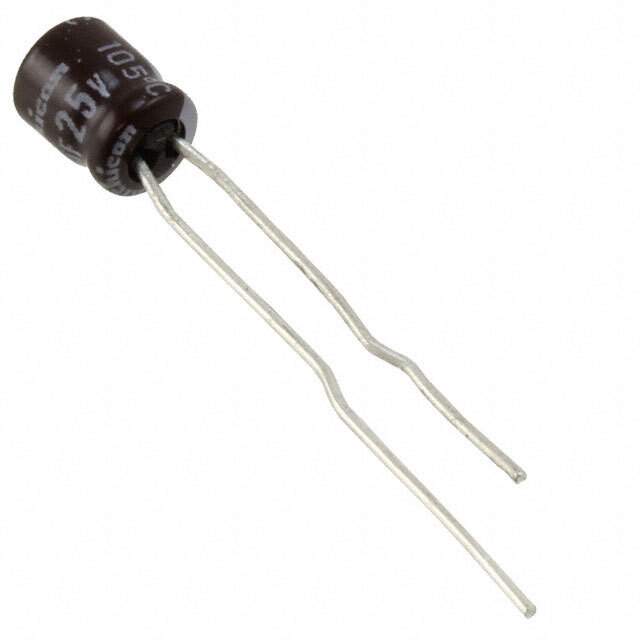

UMF1V010MDD1TP Real Image
Same model may have multiple batches, images only for reference.

UMF1V010MDD1TP

Part No UMF1V010MDD1TP
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 35V RADIAL / 1 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UMF
Package Cut Tape (CT) Tape & Box (TB)
Product Status Obsolete
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 25 mA @ 120 Hz
Ripple Current @ High Frequency 50 mA @ 100 kHz
Impedance 5 Ohms
Lead Spacing 0.059" (1.50mm)
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340383-UMF1V010MDD1TP
Ultra Librarian 3D Model Ultra Librarian UMF1V010MDD1TP CAD Model

Description

The Nichicon UMF1V010MDD1TP is an aluminum electrolytic capacitor that is used in capacitors.

  • Series: UMF
  • Package: Cut Tape (CT), Tape & Box (TB)
  • Size/Dimension: 0.157 inches Dia (4.00mm)
  • Application: General Purpose
  • Height: 0.236 inches (6.00mm) when seated
  • Standard Package: 2,000
  • Capacitance: 1 µF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • Lead Spacing: 0.059 inches (1.50mm)
  • Impedance: 5 Ohms
  • ESR: -
  • Lifetime @ Temperature: 1000 Hrs @ 105°C
  • Polarization: Yes
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can
  • Operating Temperature: -55°C to 105°C
  • HTSUS: 8532.22.0020
  • Status: Obsolete
  • Ripple Current (@ 120 Hz): 25 mA
  • Ripple Current (@ 100 kHz): 50 mA
