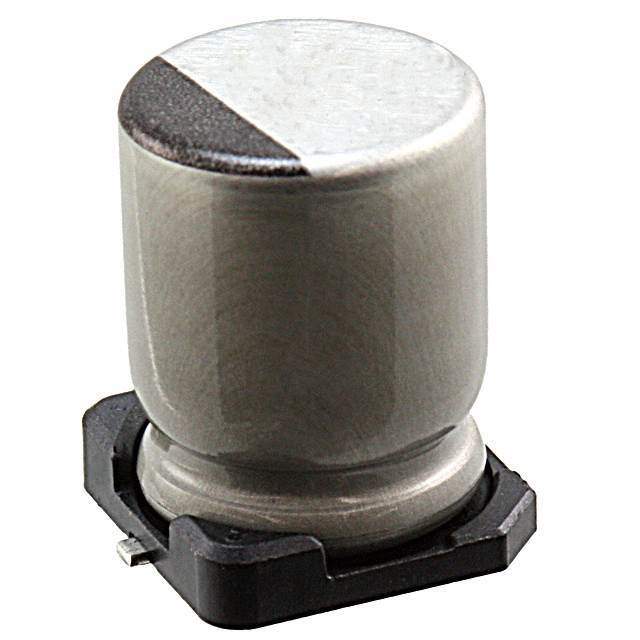

Same model may have multiple batches, images only for reference.

ULV2D120MNL1GS

Name: ULV2D120MNL1GS
Brand: Nichicon
SKU: 1338155
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ULV2D120MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 12UF 20% 200V SMD / 12 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10000 Hrs @ 105°C
Datasheet	ULV2D120MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	ULV
Package	Tape & Reel
Capacitance	12 µF
Tolerance	±20%
Voltage - Rated	200 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	50 mA @ 120 Hz
Ripple Current @ High Frequency	80 mA @ 10 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338155-ULV2D120MNL1GS
Ultra Librarian 3D Model	Ultra Librarian ULV2D120MNL1GS CAD Model

Description

The ULV2D120MNL1GS is an aluminum electrolytic capacitor from Nichicon with a capacitance of 12 µF and a tolerance of ±20%.

Capacitance: 12 µF
Tolerance: ±20%
Voltage Rating: 200V
Ripple Current: 50 mA @ 120 Hz and 80 mA @ 10 kHz
Diameter: 0.315" (8.00mm)
Height: 0.433" (11.00mm)
Mounting: Surface Mount Technology
Category: Capacitors - Aluminum Electrolytic Capacitors
REACH: Unaffected
ECCN: EAR99
