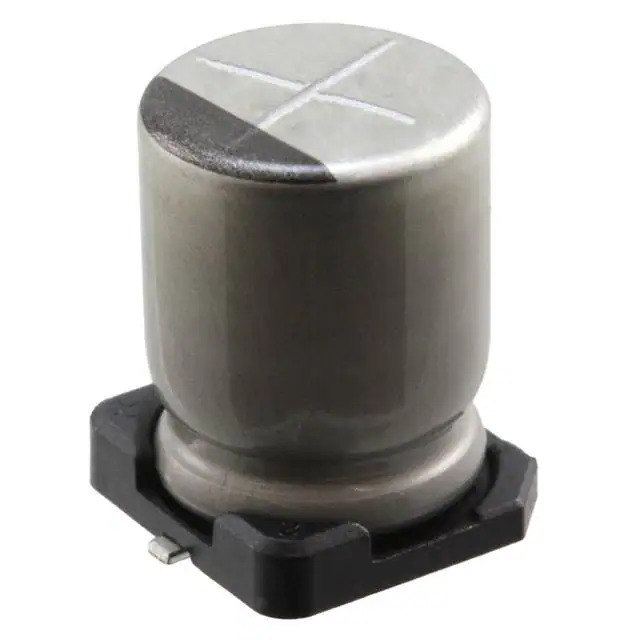

ULH2W2R2MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

ULH2W2R2MNL1GS

Part No ULH2W2R2MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 450V SMD / 2.2 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - SMD 4000 Hrs @ 125°C
Datasheet
ULH2W2R2MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series ULH
Package Tape & Reel
Product Status Active
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 20 mA @ 120 Hz
Ripple Current @ High Frequency 30 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360181-ULH2W2R2MNL1GS
Ultra Librarian 3D Model Ultra Librarian ULH2W2R2MNL1GS CAD Model

Description

The 1360181-ULH2W2R2MNL1GS is an aluminum electrolytic capacitor from Nichicon's ULH series.

  • Mounting Type: Surface mount
  • Capacitance: 2.2 μF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Application: General-purpose
  • Ripple Current (Low Frequency): 20 mA @ 120 Hz
  • Ripple Current (High Frequency): 30 mA @ 10 kHz
  • Diameter: 0.315"
  • Height: 0.433"
  • Surface Mount Land Size: 0.327" x 0.327"
  • Lifetime: 4000 hours @ 125°C
  • REACH: Unaffected
