Same model may have multiple batches, images only for reference.

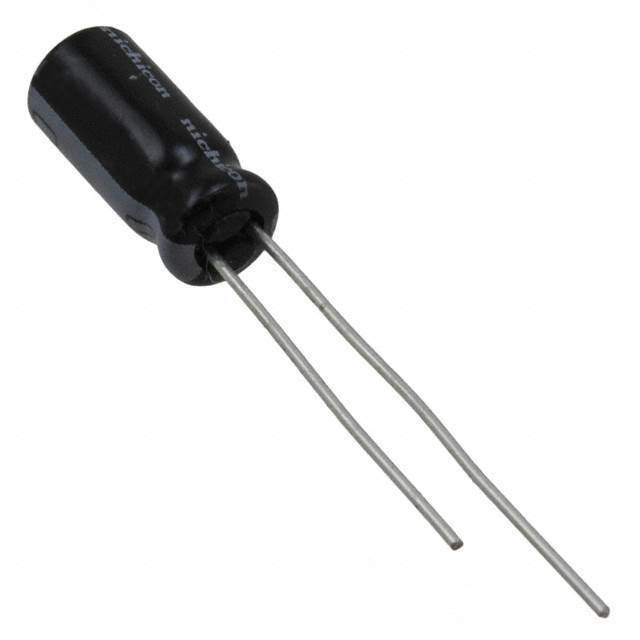

UKL2A010KDD

Name: UKL2A010KDD
Brand: Nichicon
SKU: 1217006
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UKL2A010KDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1UF 10% 100V RADIAL / 1 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UKL
Package	Bulk
Product Status	Not For New Designs
Capacitance	1 µF
Tolerance	±10%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	19 mA @ 120 Hz
Ripple Current @ High Frequency	38 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-15407,UKL2A010KDD-ND
Standard Package	200
Win Source Part Number	1217006-UKL2A010KDD
Ultra Librarian 3D Model	Ultra Librarian UKL2A010KDD CAD Model

Description

The Nichicon UKL2A010KDD is an aluminum electrolytic capacitor that belongs to the aluminum electrolytic capacitors category.

Category: Aluminum Electrolytic Capacitors
Package: Bulk
Standard Package: 200
Capacitance: 1 µF
Tolerance: ±10%
Voltage - Rated: 100 V
Lead Spacing: 0.079" (2.00mm)
ESR: Not Specified
Lifetime @ Temp.: 2000 Hrs @ 85°C
Polarization: Polar
Surface Mount Land Size: Not Specified
Mounting Type: Through Hole
Package/Case: Radial, Can
Operating Temperature Range: -40°C to 85°C
Dimension: 0.197" Dia (5.00mm)
ECCN: EAR99
MSL Level: Not Applicable
REACH Status: REACH Unaffected
HTSUS: 8532.22.0020
Other Names: 493-15407 and UKL2A010KDD-ND
Product Status: Not For New Designs
Ripple Current @ Low Frequency: 19 mA @ 120 Hz
Ripple Current @ High Frequency: 38 mA @ 10 kHz
