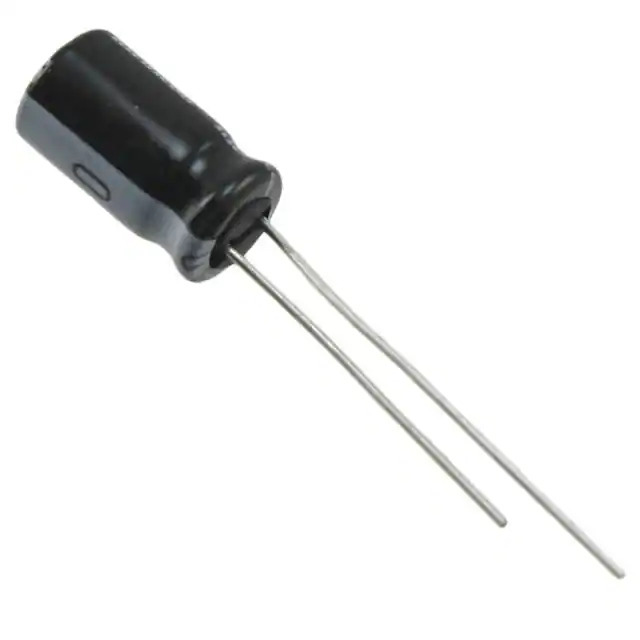

Same model may have multiple batches, images only for reference.

UHE1V560MED

Name: UHE1V560MED
Brand: Nichicon
SKU: 1357835
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1V560MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 56UF 20% 35V RADIAL / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHE1V560MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Obsolete
Capacitance	56 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	238 mA @ 120 Hz
Ripple Current @ High Frequency	340 mA @ 100 kHz
Impedance	220 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357835-UHE1V560MED
Ultra Librarian 3D Model	Ultra Librarian UHE1V560MED CAD Model

Description

The UHE1V560MED is a radial, can aluminum electrolytic capacitor from Nichicon.

Capacitance: 56 μF
Voltage Rating: 35 V
Series: UHE
Application: General Purpose
Temperature Range: -40°C to 105°C
Tolerance: ±20%
Ripple Current (Low Frequency): 238 mA @ 120 Hz
Ripple Current (High Frequency): 340 mA @ 100 kHz
Lead Spacing: 0.098" (2.50mm)
Size: 0.248" diameter (6.30mm)
Height: 0.433" (11.00mm)
Polarization: Polarized
Lifetime: 5000 hours @ 105°C
REACH: Unaffected
Impedance: 220 mOhms
