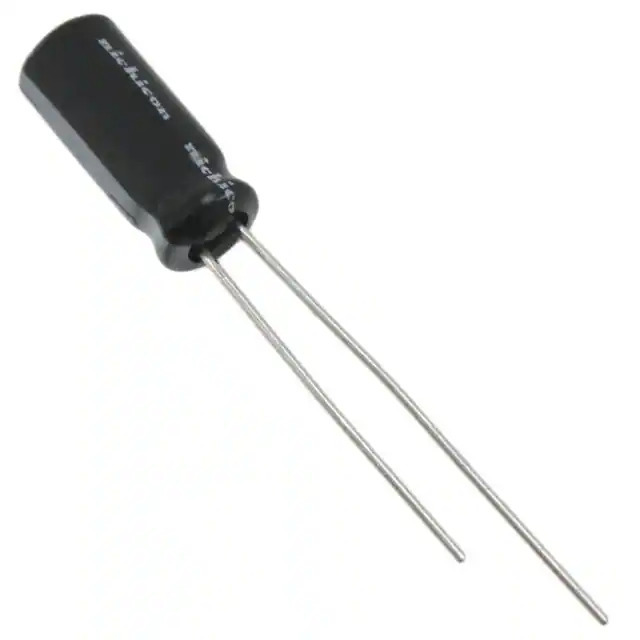

Same model may have multiple batches, images only for reference.

UHE1H100MDD

Name: UHE1H100MDD
Brand: Nichicon
SKU: 1357660
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1H100MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHE1H100MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	55 mA @ 120 Hz
Ripple Current @ High Frequency	100 mA @ 100 kHz
Impedance	1.5 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357660-UHE1H100MDD
Ultra Librarian 3D Model	Ultra Librarian UHE1H100MDD CAD Model

Description

The UHE1H100MDD is a radial, through-hole aluminum electrolytic capacitor from Nichicon.

Capacitance: 10 μF
Voltage Rating: 50 V
Temperature Range: -40°C to 105°C
Ripple Current: 55 mA @ 120 Hz, 100 mA @ 100 kHz
Tolerance: ±20%
Size: 0.197" diameter, 0.492" height
Lifetime: 5000 hours @ 105°C
Mounting: Through-Hole
Lead Spacing: 0.079" (2.00mm)
Impedance: 1.5 Ohms
Status: Obsolete - Not Recommended for New Designs
