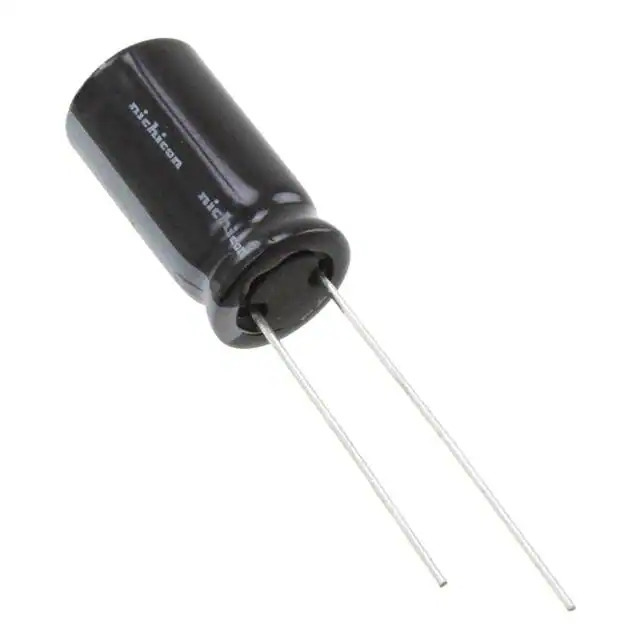

UHE1E471MPD6 Nichicon
Same model may have multiple batches, images only for reference.

UHE1E471MPD6

Part No UHE1E471MPD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1E471MPD6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 907.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.21 A @ 100 kHz
Impedance 60 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358068-UHE1E471MPD6
Ultra Librarian 3D Model Ultra Librarian UHE1E471MPD6 CAD Model

Description

The UHE series aluminum electrolytic capacitor is a high-quality component manufactured by Nichicon.

  • Capacitance: 470 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Freq): 907.5 mA @ 120 Hz
  • Ripple Current (High Freq): 1.21 A @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" (10.00mm) (Diameter)
  • Mounting Type: Through Hole
  • Height: 0.630" (16.00mm)
  • Lifetime: 7000 Hours @ 105°C
  • Polarization: Polarized
  • Impedance: 60 mOhms
  • Status: Not For New Designs
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
