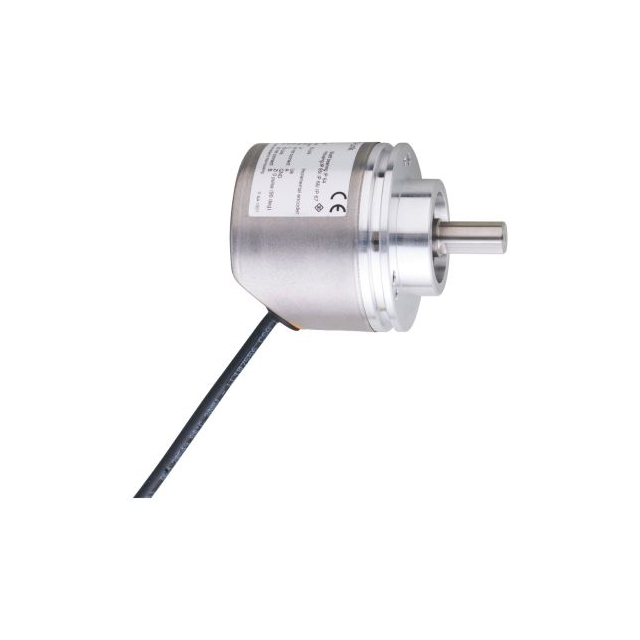

RV3500 Real Image
Same model may have multiple batches, images only for reference.

RV3500

Part No RV3500
Manufacturer ifm efector, inc.
Catalog Encoders
Description SOLID SHAFT ENCODER; SHAFT DIAME
Datasheet
RV3500 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr ifm efector, inc.
Package Box
Product Status Active
Encoder Type Incremental
Pulses per Revolution 10000
Voltage - Supply 4.75V ~ 30V
Actuator Type Shaft
Detent No
Built in Switch No
Mounting Type Panel Mount
Orientation User Selectable
Termination Style Cable
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) Not Applicable
Win Source Part Number 892646-RV3500
Ultra Librarian 3D Model Ultra Librarian RV3500 CAD Model

Description

The RV3500 Industrial Encoder is a high-quality sensor and transducer used in industrial applications.

  • Manufacturer: ifm efector, inc.
  • Installation: Panel Mount
  • Termination Style: Cable
  • Switch: No built-in switch
  • Orientation: User Selectable
  • Encoder Type: Incremental
  • Pulses per Revolution: 10,000
  • Voltage Supply Range: 4.75V to 30V
  • Package: Box
  • Quantity per Package: 1 piece
  • MSL Level: Not Applicable
