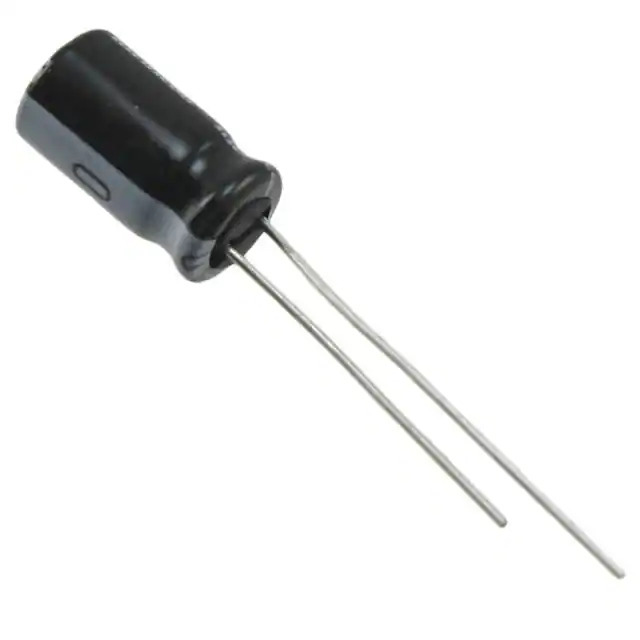

Same model may have multiple batches, images only for reference.

UHE1E101MED1TD

Name: UHE1E101MED1TD
Brand: Nichicon
SKU: 1357603
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHE1E101MED1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 25V RADIAL / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHE1E101MED1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	238 mA @ 120 Hz
Ripple Current @ High Frequency	340 mA @ 100 kHz
Impedance	220 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357603-UHE1E101MED1TD
Ultra Librarian 3D Model	Ultra Librarian UHE1E101MED1TD CAD Model

Description

The Nichicon UHE series aluminum electrolytic capacitor is designed for general-purpose applications.

Capacitance: 100 µF
Voltage Rating: 25 V
Tolerance: ±20%
Ripple Current (Low Frequency): 238 mA @ 120 Hz
Ripple Current (High Frequency): 340 mA @ 100 kHz
Lifetime: 5000 hours @ 105°C
Mounting Type: Through Hole
Package: Radial, Can
Lead Spacing: 2.50mm
REACH: Unaffected
Status: Obsolete
