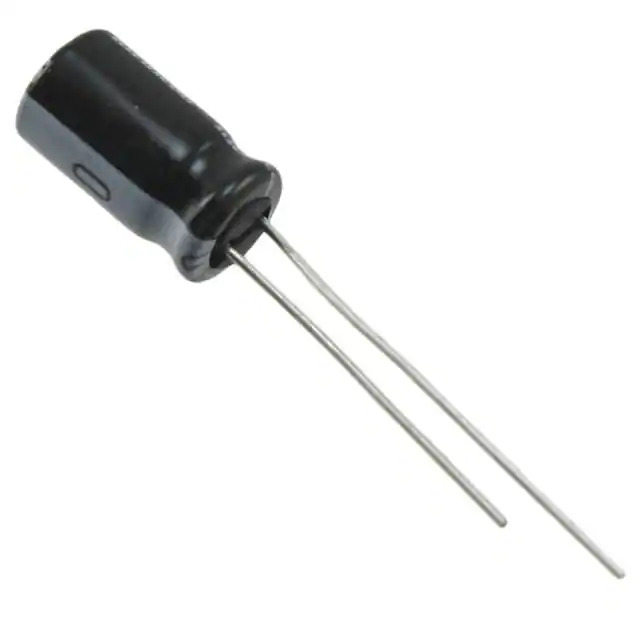

UHE1A221MED Nichicon
Same model may have multiple batches, images only for reference.

UHE1A221MED

Part No UHE1A221MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 10V RADIAL / 220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet
UHE1A221MED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Obsolete
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 238 mA @ 120 Hz
Ripple Current @ High Frequency 340 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357918-UHE1A221MED
Ultra Librarian 3D Model Ultra Librarian UHE1A221MED CAD Model

Description

The UHE1A221MED is a radial, can-type aluminum electrolytic capacitor from Nichicon's UHE series.

  • Manufacturer: Nichicon
  • Series: UHE
  • Capacitance: 220 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Ripple Current (Low Freq): 238 mA @ 120 Hz
  • Ripple Current (High Freq): 340 mA @ 100 kHz
  • Lead Spacing: 0.098" (2.50mm)
  • Size: 0.248" Dia (6.30mm)
  • Mounting Type: Through-Hole
  • Height: 0.433" (11.00mm)
  • Lifetime: 4000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 220 mOhms
  • Product Status: Obsolete
  • REACH Compliance: Unaffected
  • ECCN: EAR99
