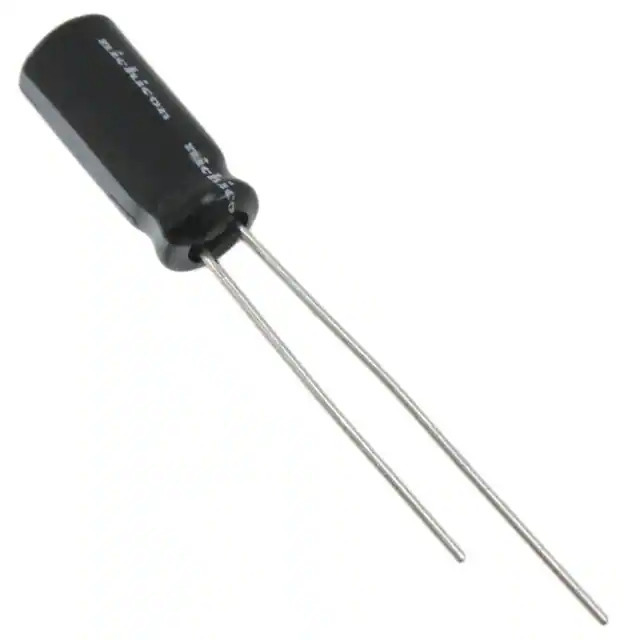

Same model may have multiple batches, images only for reference.

UHE1A101MDD

Name: UHE1A101MDD
Brand: Nichicon
SKU: 1357960
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1A101MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 10V RADIAL / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet	UHE1A101MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	147 mA @ 120 Hz
Ripple Current @ High Frequency	210 mA @ 100 kHz
Impedance	580 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357960-UHE1A101MDD
Ultra Librarian 3D Model	Ultra Librarian UHE1A101MDD CAD Model

Description

The UHE1A101MDD is an aluminum electrolytic capacitor from Nichicon's UHE series.

Capacitance: 100 µF
Voltage Rating: 10 V
Temperature Range: -40°C to 105°C
Tolerance: ±20%
Ripple Current (120 Hz): 147 mA
Ripple Current (100 kHz): 210 mA
Lead Spacing: 2.00mm
Diameter: 5.00mm
Mounting Type: Through-Hole
Package: Radial, Can
Seated Height (Max): 11.00mm
REACH: Unaffected
ECCN: EAR99
