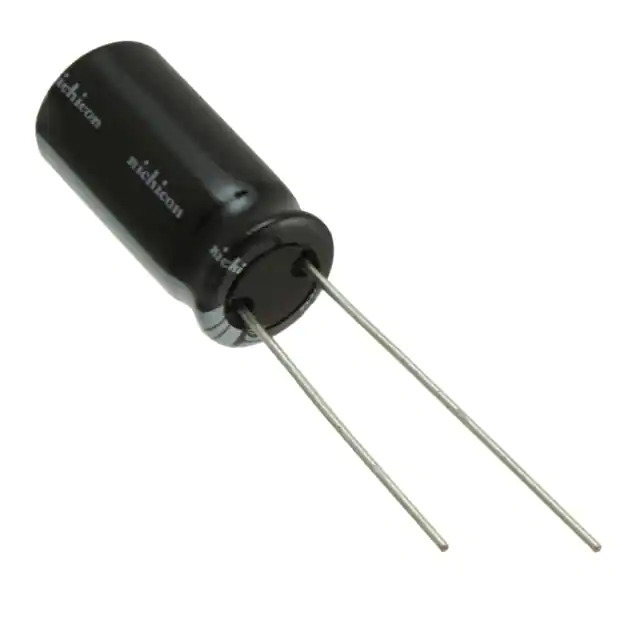

Same model may have multiple batches, images only for reference.

UHD1V221MPD6

Name: UHD1V221MPD6
Brand: Nichicon
SKU: 1358212
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHD1V221MPD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 35V RADIAL / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet	UHD1V221MPD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHD
Package	Bulk
Product Status	Not For New Designs
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	721 mA @ 120 Hz
Ripple Current @ High Frequency	1.03 A @ 100 kHz
Impedance	53 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358212-UHD1V221MPD6
Ultra Librarian 3D Model	Ultra Librarian UHD1V221MPD6 CAD Model

Description

The UHD1V221MPD6 is a radial, can aluminum electrolytic capacitor from Nichicon.

Capacitance: 220 µF
Voltage Rating: 35 V
Tolerance: ±20%
Application: General Purpose
Lifetime: 4000 hours @ 105°C
Ripple Current (Low Frequency): 721 mA @ 120 Hz
Ripple Current (High Frequency): 1.03 A @ 100 kHz
Size: 0.394" in diameter, 0.551" in height
Lead Spacing: 0.197"
REACH: Unaffected
ECCN: EAR99
Polarization: Polarized
Mounting Type: Through-Hole
Impedance: 53 mOhms
