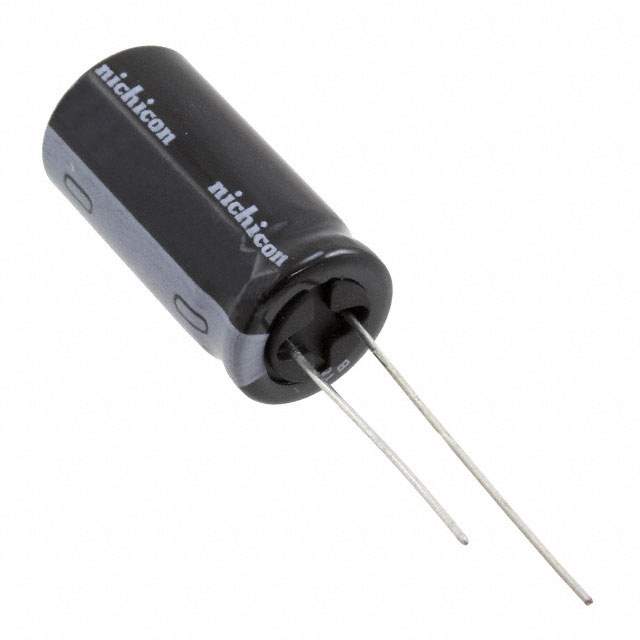

Same model may have multiple batches, images only for reference.

UHD1H821MHD6

Name: UHD1H821MHD6
Brand: Nichicon
SKU: 1349332
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UHD1H821MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 820UF 20% 50V RADIAL / 820 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHD1H821MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHD
Package	Bulk
Product Status	Not For New Designs
Capacitance	820 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.048 A @ 120 Hz
Ripple Current @ High Frequency	2.73 A @ 100 kHz
Impedance	23 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	600
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349332-UHD1H821MHD6
Ultra Librarian 3D Model	Ultra Librarian UHD1H821MHD6 CAD Model

Description

The UHD1H821MHD6 is an aluminum electrolytic capacitor manufactured by Nichicon.

Capacitance: 820 μF
Voltage Rating: 50 V
Tolerance: ±20 percent
Lead Spacing: 0.295 inches
Ripple Current: 2.048 A @ 120 Hz and 2.73 A @ 100 kHz
Polarization: Polarized
Mounting Type: Through-hole
Lifetime: 5000 hours @ a temperature of 105°C
