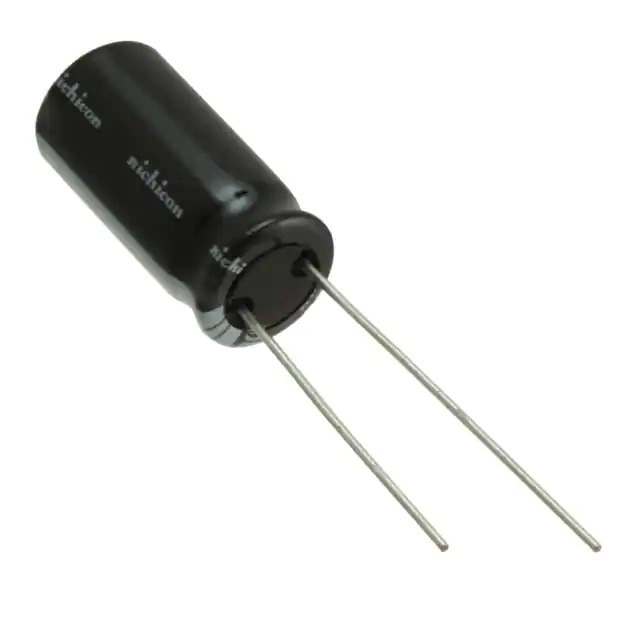

The UHD1C102MPD1TD is an aluminum electrolytic capacitor from Nichicon's UHD series. It has a capacitance of 1000 µF and a voltage rating of 16 V. With a tolerance of ±20%, it is suitable for general-purpose applications. This capacitor has a ripple current of 1.365 A @ low frequency (120 Hz) and 1.82 A @ high frequency (100 kHz). It has a lead spacing of 0.197" (5.00mm) and a size/dimension of 0.394" Dia (10.00mm). The UHD1C102MPD1TD is designed for through-hole mounting and has a height of 0.866" (22.00mm). It has a lifetime of 4000 hours @ a temperature of 105°C. This capacitor is currently not for new designs.

• Series: UHD
• Capacitance: 1000 µF
• Voltage Rating: 16 V
• Tolerance: ±20%
• Application: General Purpose
• Ripple Current (Low Frequency): 1.365 A @ 120 Hz
• Ripple Current (High Frequency): 1.82 A @ 100 kHz
• Lead Spacing: 0.197" (5.00mm)
• Size/Dimension: 0.394" Dia (10.00mm)
• Mounting Type: Through-Hole
• Height: 0.866" (22.00mm)
• Lifetime: 4000 hours @ 105°C
• Status: Not for New Designs
