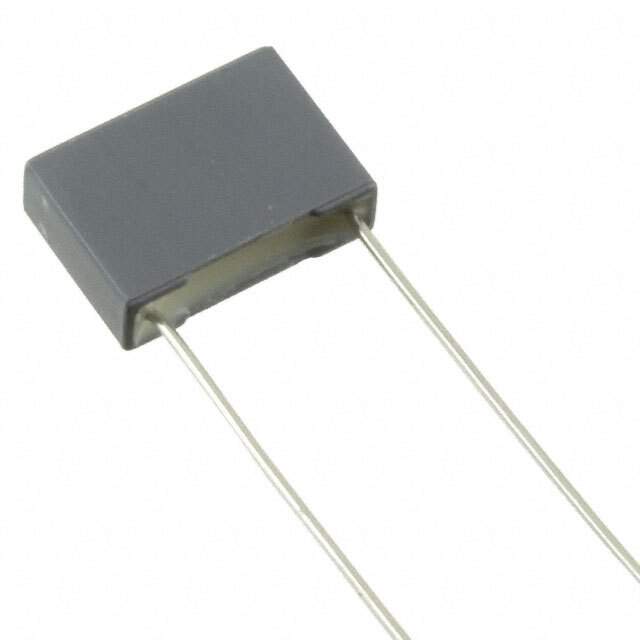

Same model may have multiple batches, images only for reference.

R474F168050A1M

Name: R474F168050A1M
Brand: Kemet
SKU: 766251
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R474F168050A1M
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 6800PF 20% 1KVDC RAD
Datasheet	R474F168050A1M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	R47
Packaging	Bulk
Capacitance	6800pF
Tolerance	±20%
Voltage Rating - AC	440V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature Range	-40°C ~ 110°C
Mounting Style	Through Hole
Package	Radial
Dimension	0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Maximum)	0.437" (11.10mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	EMI, RFI Suppression
Features	X1 Safety Rated
Win Source Part Number	766251-R474F168050A1M
Popularity	Medium
Supply and Demand Status	Limited
Family Name	R.47
Introduction Date	May 01, 2007
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian R474F168050A1M CAD Model

Description

The R474F168050A1M from Kemet is an X1 safety rated, through-hole capacitor.

Capacitance: 6800pF
Tolerance: ±20%
Voltage Rating AC: 440V
Voltage Rating DC: 1000V (1kV)
Lead Spacing: 0.394" (10.00mm)
Size: 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height: 0.437" (11.10mm)
Family: R.47
Package: Bulk
Introduction Date: May 01, 2007
Estimated EOL Date: 2028
Operating Temperature Range: -40°C to 110°C
Dielectric Material: Polypropylene (PP), Metallized
Supply and Demand Status: Limited
