Same model may have multiple batches, images only for reference.

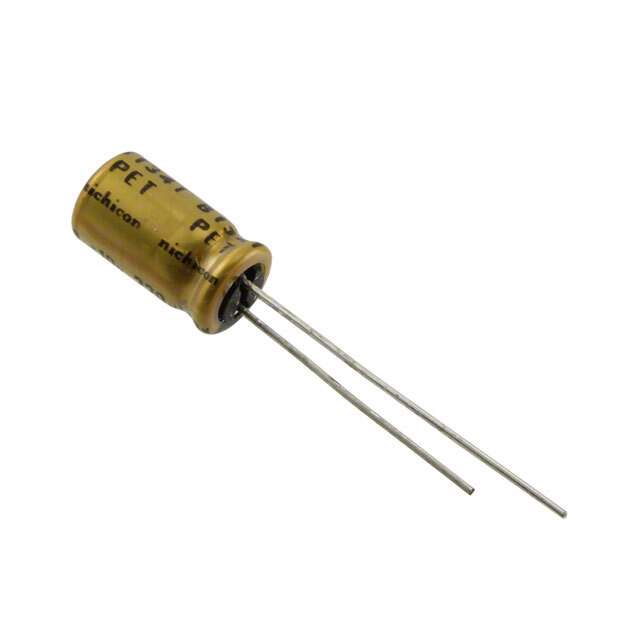

UFW1J470MED Real Image
Same model may have multiple batches, images only for reference.

UFW1J470MED

Part No UFW1J470MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 63V RADIAL / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UFW
Package Bulk
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications Audio
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-15154,UFW1J470MED-ND
Standard Package 200
Win Source Part Number 1005997-UFW1J470MED
Ultra Librarian 3D Model Ultra Librarian UFW1J470MED CAD Model

Description

The UFW series aluminum electrolytic capacitor is a high-quality component that is perfect for audio applications and manufactured by Nichicon.

  • Win Source Part Number: 1005997-UFW1J470MED
  • Capacitance: 47 µF
  • Voltage Rating: 63 V
  • Capacitance Tolerance: ±20%
  • Height (Seated): 0.433 inches
  • ESR: Not Specified
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Lead Spacing: 0.098 inches
  • Ripple Current (Low Frequency): 165 mA
  • Ripple Current (High Frequency): 330 mA
  • Series: UFW
