Same model may have multiple batches, images only for reference.

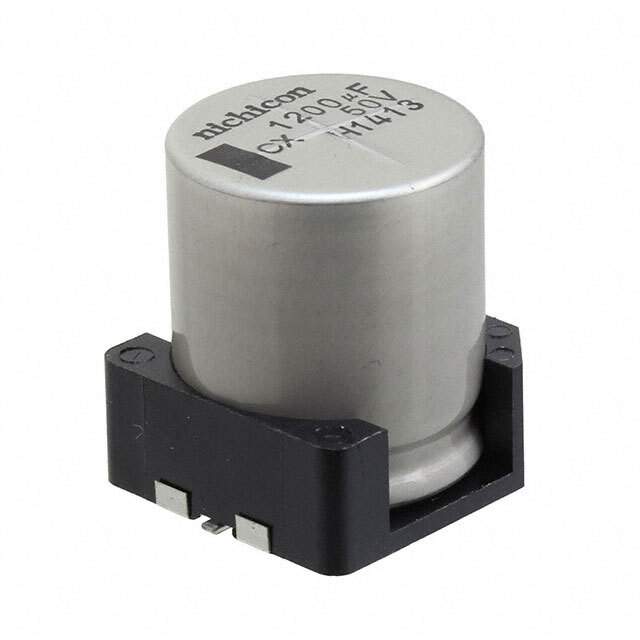

UCX1H122MNS1MS Real Image
Same model may have multiple batches, images only for reference.

UCX1H122MNS1MS

Part No UCX1H122MNS1MS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 50V SMD / 1200 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 40mOhm 2000 Hrs @ 135°C
Datasheet
UCX1H122MNS1MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCX
Package Tape & Reel
Product Status Not For New Designs
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 2000 Hrs @ 135°C
Temperature Range - Operating -40°C ~ 135°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 950 mA @ 120 Hz
Ripple Current @ High Frequency 1.9 A @ 100 kHz
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size 0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337045-UCX1H122MNS1MS
Ultra Librarian 3D Model Ultra Librarian UCX1H122MNS1MS CAD Model

Description

The UCX series capacitor is an aluminum electrolytic capacitor that comes in a Tape & Reel package. It is manufactured by Nichicon.

  • Series: UCX
  • Capacitance: 1200 µF
  • Tolerance: ±20%
  • Voltage - Rated: 50 V
  • ESR (Equivalent Series Resistance): 40mOhm
  • Polarization: Polarized
  • Surface Mount Land Size: 0.752" L x 0.752" W (19.10mm x 19.10mm)
  • Operating Temperature: -40°C ~ 135°C
  • Ripple Current @ Low Frequency: 950mA @ 120Hz
  • Ripple Current @ High Frequency: 1.9A @ 100kHz
  • Lifecycle Status: NRND
