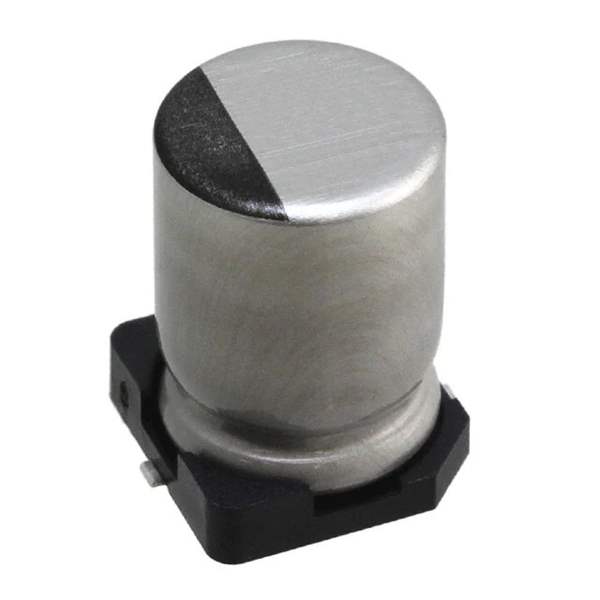

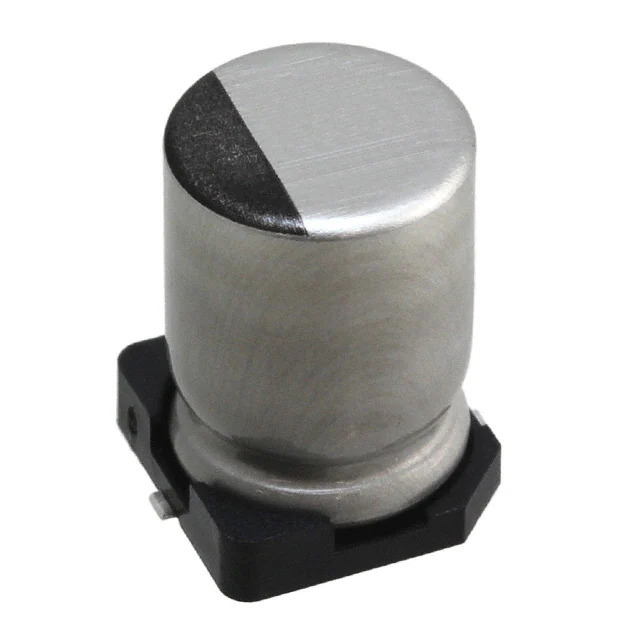

Same model may have multiple batches, images only for reference.

UCW1E101MCL1GS

Name: UCW1E101MCL1GS
Brand: Nichicon
SKU: 1360244
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCW1E101MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet	UCW1E101MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCW
Package	Tape & Reel
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	115 mA @ 120 Hz
Ripple Current @ High Frequency	230 mA @ 100 kHz
Impedance	1 Ohms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.343" (8.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360244-UCW1E101MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCW1E101MCL1GS CAD Model

Description

The UCW1E101MCL1GS is an aluminum electrolytic capacitor from Nichicon.

Application: General-Purpose
Capacitance: 100 µF
Voltage Rating: 25 V
Tolerance: ±20%
Temperature Range: -25°C to 105°C
Lifetime: 7000 hours @ 105°C
Package: Radial, Can - SMD
Diameter: 0.248" (6.30mm)
Height: 0.343" (8.70mm)
Mounting Type: Surface Mountable
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Ripple Current (120 Hz): 115 mA
Ripple Current (100 kHz): 230 mA
