Same model may have multiple batches, images only for reference.

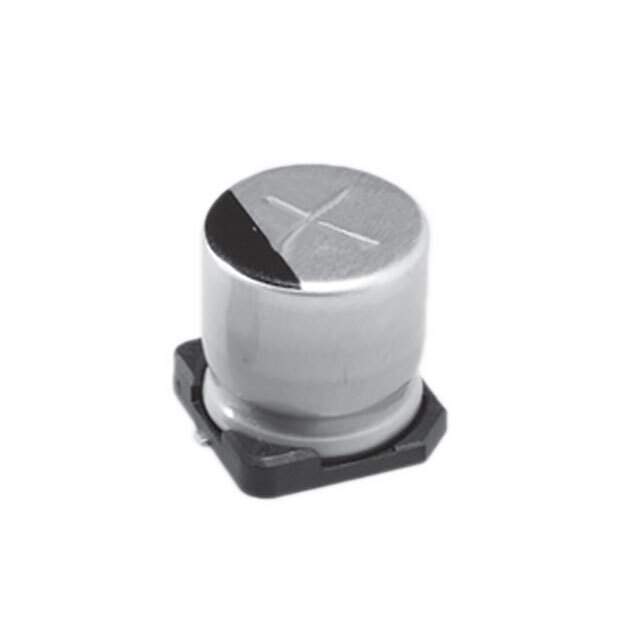

UCV1V471MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCV1V471MNL1GS

Part No UCV1V471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 35V SMD / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCV1V471MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCV
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338152-UCV1V471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCV1V471MNL1GS CAD Model

Description

The Nichicon 1338152-UCV1V471MNL1GS Aluminum Electrolytic Capacitors are a great choice for a variety of electronic applications.

  • Manufacturer: Nichicon
  • Product: 1338152-UCV1V471MNL1GS
  • Capacitance: 470 µF
  • Tolerance: ±20%
  • Polarization: Polar
  • Voltage Rating: 35 V
  • Series: UCV
  • Package: Radial, Can - SMD
