Same model may have multiple batches, images only for reference.

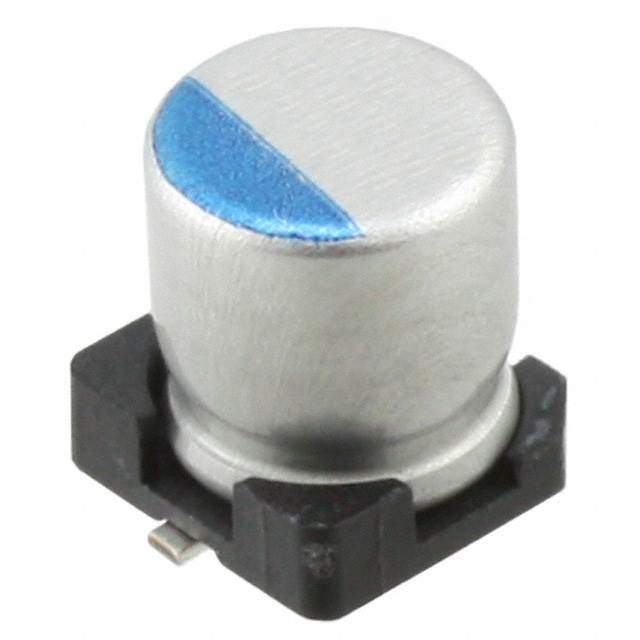

UCL1C102MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCL1C102MNL1GS

Part No UCL1C102MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V SMD / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 595 mA @ 120 Hz
Ripple Current @ High Frequency 1.19 A @ 100 kHz
Impedance 60 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.531" (13.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-3930-6,493-3930-1,493-3930-2
Standard Package 400
Win Source Part Number 1330903-UCL1C102MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCL1C102MNL1GS CAD Model

Description

The Nichicon UCL1C102MNL1GS is an aluminum electrolytic capacitor with a capacitance of 1000μF and a voltage rating of 16V.

  • Manufacturer: Nichicon
  • Product Name: UCL1C102MNL1GS
  • Capacitance: 1000μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Application: General-Purpose
  • Mounting Type: Reel
  • Dimensions: 0.394" Dia (10.00mm)
  • Height: 0.531" (13.50mm)
  • Ripple Current (Low Frequency): 595 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.19 A @ 100 kHz
  • Polarized: Yes
  • Impedance: 60 mOhms
  • ESR: -
