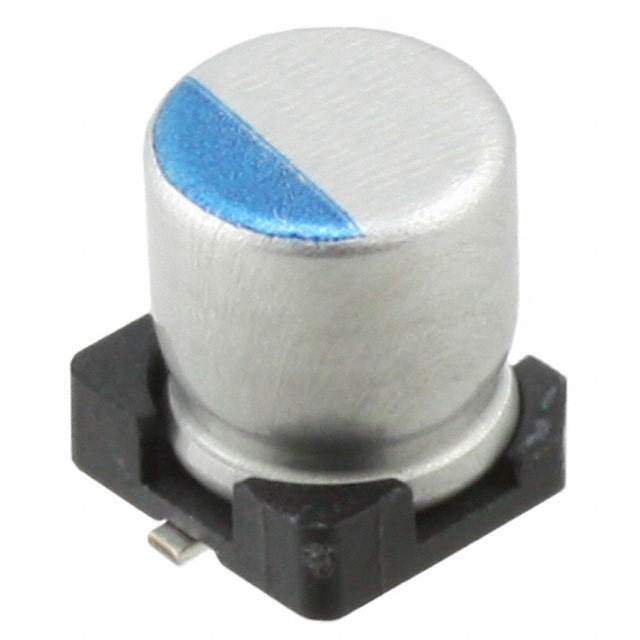

Same model may have multiple batches, images only for reference.

UCL1A152MNL1GS

Name: UCL1A152MNL1GS
Brand: Nichicon
SKU: 1350065
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCL1A152MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 10V SMD / 1500 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1A152MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	595 mA @ 120 Hz
Ripple Current @ High Frequency	1.19 A @ 100 kHz
Impedance	60 mOhms
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.531" (13.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1350065-UCL1A152MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCL1A152MNL1GS CAD Model

Description

The Nichicon 1350065-UCL1A152MNL1GS capacitor is a surface mount aluminum electrolytic capacitor with a capacitance of 1500 µF and a voltage rating of 10V.

Capacitance: 1500 µF
Voltage Rating: 10V
Tolerance: ±20%
Impedance: 60 mOhms
Polarization: polarized
Package: radial, can - SMD
Application: general purpose
Temperature Range: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Packaging: tape & reel
Quantity: 400
