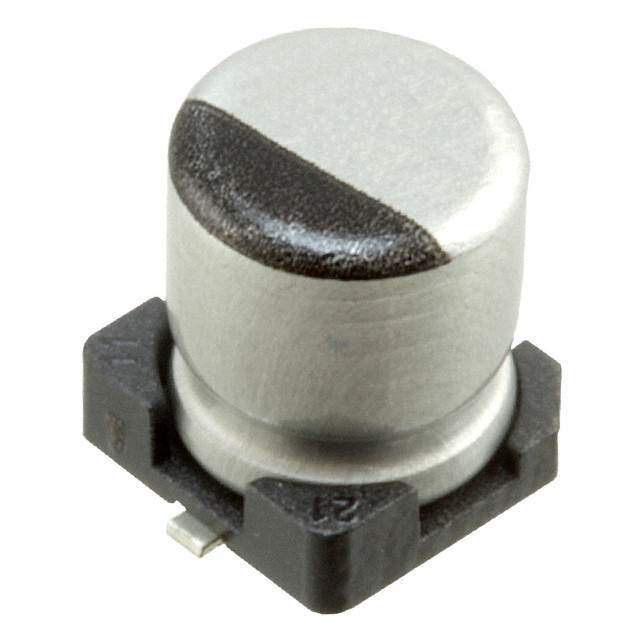

Same model may have multiple batches, images only for reference.

UCD1V220MCL1GS

Name: UCD1V220MCL1GS
Brand: Nichicon
SKU: 1307346
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCD1V220MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	80 mA @ 120 Hz
Ripple Current @ High Frequency	160 mA @ 100 kHz
Impedance	700 mOhms
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Other Names	493-6422-6,493-6422-2,UCD1V220MCL1GS,493-6422-1
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307346-UCD1V220MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1V220MCL1GS CAD Model

Description

The UCD1V220MCL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

Capacitance: 22 µF
Voltage Rating: 35 V
Case/Package: Radial, can-SMD
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Ripple Current (Low Frequency): 80 mA @ 120 Hz
Ripple Current (High Frequency): 160 mA @ 100 kHz
Lifetime: 2000 Hrs @ 105°C
Polarized: Yes
AEC-Q200 Rated: Yes
ECCN: EAR99
