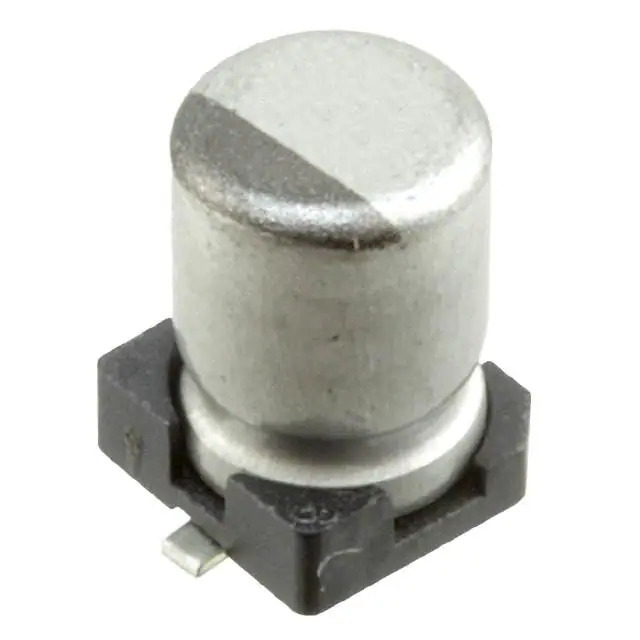

UCD1V100MCL6GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1V100MCL6GS

Part No UCD1V100MCL6GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 35V SMD / 10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1V100MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 45 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Impedance 1.35 Ohms
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360175-UCD1V100MCL6GS
Ultra Librarian 3D Model Ultra Librarian UCD1V100MCL6GS CAD Model

Description

The UCD1V100MCL6GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon's UCD series.

  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Voltage: 35 V
  • Application: Automotive
  • Ripple Current (Low Frequency): 45 mA @ 120 Hz
  • Ripple Current (High Frequency): 90 mA @ 100 kHz
  • Size: 0.157" (4.00mm) diameter x 0.240" (6.10mm) height
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200: Rated
  • REACH: Unaffected
  • ESR: Not Specified
  • Packaging: Tape and Reel
