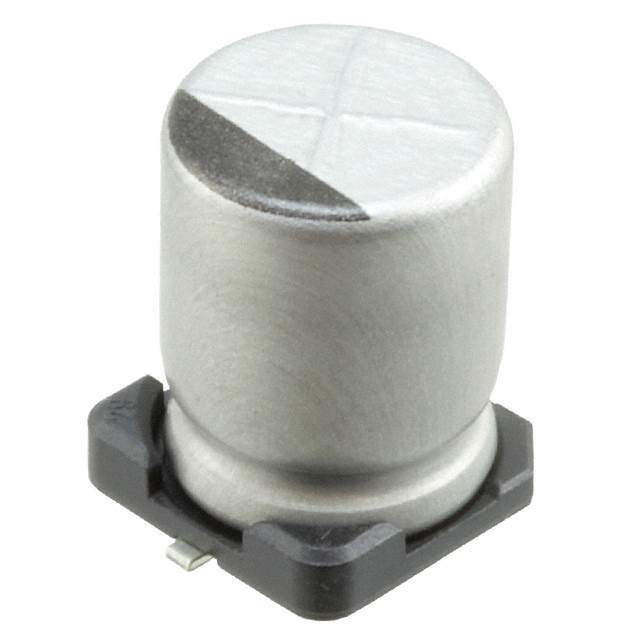

Same model may have multiple batches, images only for reference.

UCD1J470MNL1GS

Name: UCD1J470MNL1GS
Brand: Nichicon
SKU: 1342728
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1J470MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 63V SMD / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1J470MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	125 mA @ 120 Hz
Ripple Current @ High Frequency	250 mA @ 100 kHz
Impedance	650 mOhms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1342728-UCD1J470MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1J470MNL1GS CAD Model

Description

The Nichicon UCD series aluminum electrolytic capacitor is a high-quality component perfect for automotive applications.

Manufacturer: Nichicon
Series: UCD
Application: Automotive
Capacitance: 47 µF
Voltage Rating: 63 V
Tolerance: ±20%
Impedance: 650 mOhms
ESR: Not specified
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type: Surface Mount
Package/Case: Radial, Can - SMD
Operating Temperature: -55°C ~ 105°C
Lifetime: 2000 Hrs @ 105°C
Polarization: Polar
Standard Package: 500
Compliance: AEC-Q200 compliant
